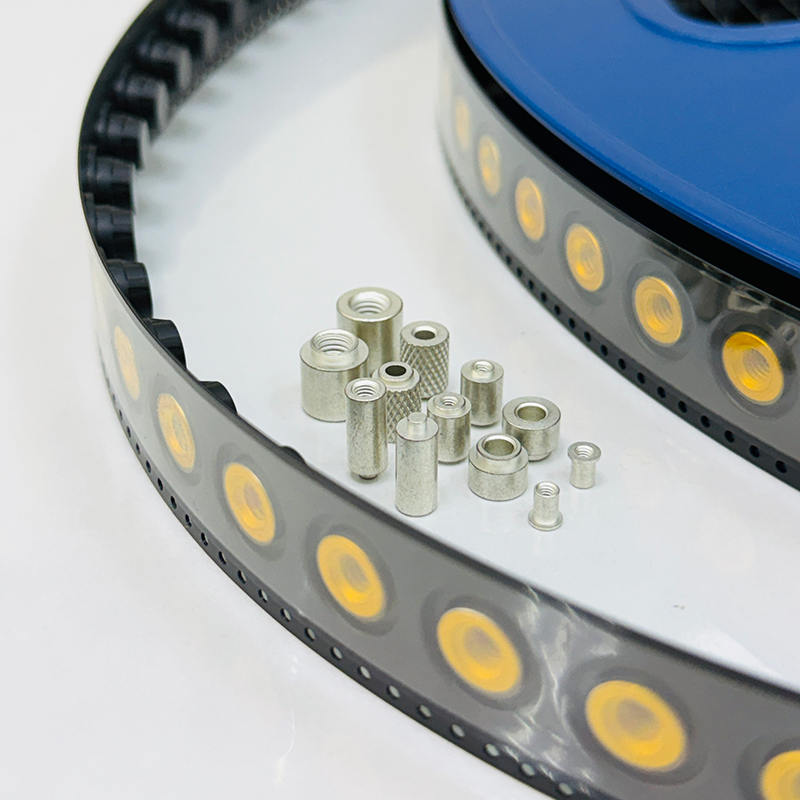

SMT Nut & Threaded Standoffs
U-TEK SMT Nut and Threaded Standoffs are precision-engineered fastening solutions designed for fully automated PCB assembly.
The products are compatible with standard SMT equipment and IR reflow soldering processes, can be provided reliable mechanical fastening while improving manufacturing efficiency and assembly reliability.
The products are compatible with standard SMT equipment and IR reflow soldering processes, can be provided reliable mechanical fastening while improving manufacturing efficiency and assembly reliability.
To support high-speed SMT automatic processes, U-TEK SMT Nut are supplied with a high-temperature resistant PI (Polyimide) Film attached to the top surface, allowing standard SMT vacuum nozzles to securely pick and place the Nut on the PCB. The PI Film would be removed after the reflow soldering process, leaving a clean and reliable threaded fastening solution on the PCB.
SMT Nut & Threaded Standoffs of U-TEK can be available in various thread sizes, body diameters, mounting heights, surface finishes, and packaging options, U-TEK SMT Nut & Threaded Standoffs are widely used in AI computing M/B, AI servers, networking equipment, industrial computers, laptop, automotive electronics, and other high-density electronic assemblies.
SMT Nut & Threaded Standoffs of U-TEK can be available in various thread sizes, body diameters, mounting heights, surface finishes, and packaging options, U-TEK SMT Nut & Threaded Standoffs are widely used in AI computing M/B, AI servers, networking equipment, industrial computers, laptop, automotive electronics, and other high-density electronic assemblies.
Product Benefits
- SMT Automation Ready
- EIA Tape & Reel Packaging
- Excellent Solderability
- High Mechanical Strength
- Wide Product Range
- Custom Design Service
- Stable Quality & Fast Delivery
- RoHS & REACH Compliant
Typical Applications
- AI Computing PCB
- AI Server
- Networking Equipment
- Notebook Computer
- Industrial Computer
- Automotive Electronics
- Consumer Electronics
- Telecom Equipment
Product Features
- Material：Brass / Steel
- Electroplating：Tin / Nickel / Zn
- Thread Size：M1.4 /M1.6 /M2.0 ~ M7 /M8…(or Customized)
- Packaging：EIA Tape & Reel
- Process：SMT Pick & Place
- Soldering：Reflow Compatible
- Compliance：RoHS & REACH
EIA Tape & Reel Packaging:
Supports high-speed automated production.
Supports high-speed automated production.
SMT Automation Ready: Compatible with standard SMT pick-and-place equipment.
Excellent Solderability: Suitable for standard reflow soldering processes.
High Mechanical Strength
Provides secure PCB fastening after soldering
High Mechanical Strength
Provides secure PCB fastening after soldering
Wide Product Selection: Various thread sizes, PCB heights, and configurations.
Custom Design Available: Customized dimensions and specifications upon request.
Custom Design Available: Customized dimensions and specifications upon request.
Stable Quality & Fast Delivery: Standardized production with reliable quality and short lead time
RoHS Compliant: Environmentally compliant materials and plating options
RoHS Compliant: Environmentally compliant materials and plating options
Product Specifications
| K-Type | K-Type (00) | ||
| K: Nut OD |  |
T: Nut OD |  |
| M: 1.4/1.6/1.7/2.0/2.5/3.0/4.0/5.0... | M: 1.4/1.6/2.0/2.5/3.0/3.5/4.0/5.0... | ||
| P: Pitch: 0.3/0.35/0.4/0.5/0.7/0.8... | P: Pitch: 0.3/0.35/0.4/0.5/0.7/0.8... | ||
| B: Minimum Screw Depth | B: Minimum Screw Depth | ||
| E: Through Hole Diameter | E: 00 | ||
| A: Height Above PCB | A: Height Above PCB | ||
| H: Through Hole Height | H: 00 | ||
| T-Type | T-Type (NPT) | ||
| T: Nut OD |  |
T: Nut OD |  |
| M: 1.4/1.6/2.0/2.5/3.0/3.5/4.0/5.0... | M: ID-M (No Thread) | ||
| P: Pitch: 0.3/0.35/0.4/0.5/0.7/0.8... | P: No Pitch (Through Hole) | ||
| B: N/A | B: N/A | ||
| E: Through Hole Diameter | E: Through Hole Diameter | ||
| A: Height above PCB | A: Height above PCB | ||
| H: Height of PCB Through hole | H: Height of PCB Through hole | ||
| T-Type (00) | T-Type (NPT-00) | ||
| T: Nut OD |  |
T: Nut OD |  |
| M: 1.4/1.6/2.0/2.5/3.0/4.0/5.0... | M: ID-M (No Thread) | ||
| P: 0.3/0.35/0.4/0.45/0.5/0.7/0.8... | P: No Pitch (Through Hole) | ||
| B: N/A | B: N/A | ||
| E: 00 | E: 00 | ||
| A: Height above PCB | A: Height above PCB | ||
| H: 00 | H: 00 | ||
| H-Type | H-Type (NPT) | ||
| H: Nut OD |  |
U: Nut OD |  |
| T: Top OD Diameter | T: Top OD Diameter | ||
| M: 1.4/1.6/2.0/2.5/3.0/4.0/5.0... | M: ID-M (No Thread) | ||
| P: 0.3/0.35/0.4/0.45/0.5/0.7/0.8... | P: No Pitch (Through Hole) | ||
| E: Through Hole Diameter | E: Through Hole Diameter | ||
| A: Height above PCB | A: Height above PCB | ||
| H1: Height of Panel Through hole | H1: Height of Panel Through hole | ||
| H2: Height of PCB Through hole | H2: Height of PCB Through hole | ||
| U-Type | 6K (00)-Type | ||
| U: Nut OD |  |
6K: Nut OD |  |
| T: Top OD Diameter | M: 1.4/1.6/2.0/2.5/3.0/3.5/4.0/5.0... | ||
| M: M1.6/2.0/2.5/3.0/4.0/5.0 | P: Pitch: 0.3/0.35/0.4/0.5/0.7/0.8... | ||
| P: Pitch: 0.3/0.35/0.4/0.5/0.7/0.8... | B: N/A | ||
| B: Minimum screw depth | E: 00 | ||
| E: Through Hole Diameter | A: Height Above PCB | ||
| A: Height above PCB | H: 00 | ||
| H1: Height of Panel Through hole | -------- | ||
| H2: Height of PCB Through hole | -------- | ||
| 6K-Type | 6KT-Type | ||
| 6K: Nut OD |  |
6KT: Nut OD |  |
| T: N/A | T: Top OD Diameter | ||
| M1/M2: 2.0/2.5/3.0/4.0/5.0/6.0... | M1/M2: 2.0/2.5/3.0/4.0/5.0/6.0... | ||
| P1/P2: 0.4/0.45/0.5/0.7/0.8/1.0... | P1/P2: 0.4/0.45/0.5/0.7/0.8/1.0... | ||
| B: Minimum screw depth | B: Minimum screw depth | ||
| E: External thread (Outer Diameter) =(M2xP2) | E: External thread (Outer Diameter) =(M2xP2) | ||
| A: Height of above screw plate | A: Height of above screw plate | ||
| H: Height of External thread | H1: Height of Panel Through hole | ||
| N/A | H2: Height of External thread | ||
| 6KU-Type | 6KH-Type | ||
| 6KU: Nut OD |  |
6KH: Nut OD |  |
| T: N/A | T=(M1xP1) | ||
| M1/M2: 2.0/2.5/3.0/4.0/5.0/6.0... | M1/M2: 2.0/2.5/3.0/4.0/5.0/6.0... | ||
| P1/P2: 0.4/0.45/0.5/0.7/0.8/1.0... | P1/P2: 0.4/0.45/0.5/0.7/0.8/1.0... | ||
| B1: Minimum screw depth | E =(M2xP2) | ||
| B2: Minimum screw depth | A: Height of above screw plate | ||
| E: 00 | H1: Height of External thread | ||
| A: Height of above screw plate | H2: Height of External thread | ||
| ST-Type | |||||
| ST: Nut OD |  |
 |
 |
 |
 |
| T: Top OD Diameter | |||||
| M: 00 | |||||
| P: N/A | |||||
| E: Through Hole Diameter | |||||
| A: Height of above screw plate | |||||
| H1: Height of Panel Through hole | |||||
| H2: Height of PCB Through hole | |||||
Recommended solder area
Part Number Structure
| T | 50 | M30 | E41 | - | 35 | 15 | T | -NP | |
| 〔1〕 | 〔2〕 | 〔3〕 | 〔4〕 | 〔5〕 | 〔6〕 | 〔7〕 | 〔8〕 | ||
| 〔1〕 | Type Series: K Type; T Type; H Type; U Type... | ||||||||
| 〔2〕 | 50 = ф5.0mm (35=ф3.5mm; 40=ф4.0mm; 45=ф4.5mm; 50=ф5.0mm; 55=ф5.5mm... ) | ||||||||
| 〔3〕 | M (Screw ID): M20 = ф2.0mm (M16=ф1.6mm; M17=ф1.7mm; M20=ф2.0mm; M25=ф2.5mm; M30=ф3.0mm...) P (Screw Pitch): M16 / 17 (P=0.35mm); M20 (P=0.40mm); M25 (P=0.45mm); M30 (P=0.5mm) ... |
||||||||
| 〔4〕 | E: E41 =ф4.1mm (Through Hole Height) | ||||||||
| 〔5〕 | A: 09 = 0.9mm; 35 = 3.5mm; 265 = 2.65mm (Height above PCB) | ||||||||
| 〔6〕 | H: 08 = 0.8mm; 10 = 1.0mm; 12 = 1.2mm; 15 = 1.5mm (Through Hole Height) | ||||||||
| 〔7〕 | T (Tin Plate); A (Au Plate); S = Stainless steel without plating (RoHS Compliant) | ||||||||
| 〔8〕 | -NP = No Screw Pitch | ||||||||
| 〔9〕 | -1= Customize for some shape | ||||||||
| T Type: M14 / M16 / M18 | |||||||||||||||
| Part No. | T | M | E | A | H | MPQ | Part No. | T | M | E | A | H | MPQ | ||
| 1 | T30M14E24-1515T | 3.0 | 1.4 | 2.4 | 1.5 | 1.5 | 2400 | 7 | T35M16E25-3511T | 3.5 | 1.6 | 2.5 | 3.5 | 1.1 | 1500 |
| 2 | T27M16E22-2108TNPT | 2.7 | 1.6 | 2.2 | 2.1 | 0.8 | 2500 | 8 | T35M16E27-2008T | 3.5 | 1.6 | 2.7 | 2.0 | 0.8 | 2500 |
| 3 | T30M16E20-1008TNP | 3.0 | 1.6 | 2.0 | 1.0 | 0.8 | 3300 | 9 | T35M16E27-3008T | 3.5 | 1.6 | 2.7 | 3.0 | 0.8 | 1800 |
| 4 | T35M16E20-1508TP | 3.5 | 1.6 | 2.0 | 1.5 | 0.8 | 3000 | 10 | T35M16E30-3511TP | 3.5 | 1.6 | 3.0 | 3.5 | 1.1 | 1500 |
| 5 | T35M16E20-4008TP | 3.5 | 1.6 | 2.0 | 4.0 | 0.8 | 1600 | 11 | T37M16E25-07175T | 3.7 | 1.6 | 2.5 | 0.7 | 1.75 | 2700 |
| 6 | T35M16E25-2511T | 3.5 | 1.6 | 2.5 | 2.5 | 1.1 | 2000 | 12 | T36M18E28-3511T | 3.6 | 1.8 | 2.8 | 3.5 | 1.1 | 1600 |
| Can be customized requirements any specifications | |||||||||||||||
| T Type: M20 / M22 | |||||||||||||||
| Part No. | T | M | E | A | H | MPQ | Part No. | T | M | E | A | H | MPQ | ||
| 1 | T30M20E40-4005T | 3.0 | 2.0 | 4.0 | 4.0 | 0.5 | 1200 | 18 | T45M20E30-32152TP | 4.5 | 2.0 | 3.0 | 3.2 | 1.52 | 1000 |
| 2 | T35M20E27-2920TP | 3.5 | 2.0 | 2.7 | 2.9 | 2.0 | 1500 | 19 | T45M20E30-7515N | 4.5 | 2.0 | 3.0 | 7.5 | 1.43 | 550 |
| 3 | T36M20E28-3611TNP | 3.6 | 2.0 | 2.8 | 3.6 | 1.1 | 1600 | 20 | T45M20E31-27516TP | 4.5 | 2.0 | 3.1 | 2.75 | 1.6 | 1200 |
| 4 | T40M20E00-3200T | 4.0 | 2.0 | 0.0 | 3.2 | 0.0 | 1600 | 21 | T45M20E31-3008T | 4.5 | 2.0 | 3.1 | 3.0 | 0.8 | 1200 |
| 5 | T40M20E25-3515T | 4.0 | 2.0 | 2.5 | 3.5 | 1.5 | 1400 | 22 | T45M20E31-3016TP | 4.5 | 2.0 | 3.1 | 3.0 | 1.6 | 1200 |
| 6 | T40M20E27-4009TP | 4.0 | 2.0 | 2.7 | 4.0 | 0.9 | 1400 | 23 | T45M20E32-6411TP | 4.5 | 2.0 | 3.2 | 6.4 | 1.1 | 300 |
| 7 | T40M20E29-0510TNPT | 4.0 | 2.0 | 2.9 | 0.5 | 1.0 | 4000 | 24 | T50M20E30-14506T | 5.0 | 2.0 | 3.0 | 1.45 | 0.6 | 1800 |
| 8 | T40M20E29-0510TP | 4.0 | 2.0 | 2.9 | 0.5 | 1.0 | 4000 | 25 | T50M20E30-14508T | 5.0 | 2.0 | 3.0 | 1.45 | 0.8 | 1800 |
| 9 | T40M20E29-3511TP-B | 4.0 | 2.0 | 2.9 | 3.5 | 1.1 | 1200 | 26 | T50M20E30-1509T | 5.0 | 2.0 | 3.0 | 1.5 | 0.9 | 1800 |
| 10 | T40M20E29-5011TP | 4.0 | 2.0 | 2.9 | 5.0 | 1.1 | 800 | 27 | T50M20E30-4409T | 5.0 | 2.0 | 3.0 | 4.4 | 0.9 | 850 |
| 11 | T40M20E29-7011T | 4.0 | 2.0 | 2.9 | 7.0 | 1.1 | 600 | 28 | T50M20E30-6709T | 5.0 | 2.0 | 3.0 | 6.7 | 0.9 | 450 |
| 12 | T40M20E31-4416T | 4.0 | 2.0 | 3.1 | 4.4 | 1.6 | 800 | 29 | T50M20E35-0315TP | 5.0 | 2.0 | 3.5 | 0.3 | 1.5 | 2000 |
| 13 | T40M20E29-5809TP | 4.0 | 2.0 | 2.9 | 5.8 | 0.9 | 750 | 30 | T55M20E40-0510T | 5.5 | 2.0 | 4.0 | 0.5 | 1.0 | 2700 |
| 14 | T435M20E28-1514TP | 4.35 | 2.0 | 2.8 | 1.5 | 1.4 | 1600 | 31 | T55M20E40-0510TNP | 5.5 | 2.0 | 4.0 | 0.5 | 1.0 | 2700 |
| 15 | T435M20E28-7014TP | 4.35 | 2.0 | 2.8 | 7.0 | 1.4 | 550 | 32 | T56M20E41-3015TP | 5.6 | 2.0 | 4.1 | 3.0 | 1.5 | 1200 |
| 16 | T45M20E26-1608TP | 4.5 | 2.0 | 2.6 | 1.6 | 0.8 | 1600 | 33 | T40M22E27-4009TNPT | 4.0 | 2.2 | 2.7 | 4.0 | 0.9 | 1400 |
| 17 | T45M20E26-26515TP | 4.5 | 2.0 | 2.6 | 2.65 | 1.5 | 1200 | 34 | T45M22E32-8608TNPT | 4.5 | 2.2 | 3.2 | 8.6 | 0.8 | 500 |
| Can be customized requirements any specifications | |||||||||||||||
| T Type: M25 / M26 / M27 / M28 | |||||||||||||||
| Part No. | T | M | E | A | H | MPQ | Part No. | T | M | E | A | H | MPQ | ||
| 1 | T40M25E35-07514TP | 4.0 | 2.5 | 3.5 | 0.75 | 1.4 | 3000 | 10 | T55M25E40-2020T | 5.5 | 2.5 | 4.0 | 2.0 | 2.0 | 1200 |
| 2 | T45M25E35-0525TP-B | 4.5 | 2.5 | 3.5 | 0.5 | 2.5 | 1500 | 11 | T55M25E40-5015TP | 5.5 | 2.5 | 4.0 | 5.0 | 1.5 | 750 |
| 3 | T50M25E33-10015TP | 5.0 | 2.5 | 3.3 | 10.0 | 1.5 | 300 | 12 | T60M25E31-1516T | 6.0 | 2.5 | 3.1 | 1.5 | 1.6 | 1200 |
| 4 | T50M25E33-5015T | 5.0 | 2.5 | 3.3 | 5.0 | 1.5 | 750 | 13 | T60M25E31-4416TP | 6.0 | 2.5 | 3.1 | 4.4 | 1.6 | 800 |
| 5 | T50M25E33-8015TP | 5.0 | 2.5 | 3.3 | 8.0 | 1.5 | 400 | 14 | T52M26E42-11015TNP | 5.2 | 2.6 | 4.2 | 11.0 | 1.5 | 300 |
| 6 | T50M25E35-0328TP | 5.0 | 2.5 | 3.5 | 0.3 | 2.8 | 1600 | 15 | T50M27E335-5020TNPT | 5.0 | 2.7 | 3.35 | 5.0 | 2.0 | 500 |
| 7 | T50M25E36-3011TP | 5.0 | 2.5 | 3.6 | 3.0 | 1.1 | 1200 | 16 | T50M27E36-6015TNPT | 5.0 | 2.7 | 3.6 | 6.0 | 1.5 | 450 |
| 8 | T50M25E36-5009TP | 5.0 | 2.5 | 3.6 | 5.0 | 0.9 | 800 | 17 | T55M27E32-5020TP | 5.5 | 2.7 | 3.2 | 5.0 | 2.0 | 750 |
| 9 | T55M25E40-2015TP | 5.5 | 2.5 | 4.0 | 2.0 | 1.5 | 1200 | 18 | |||||||
| Can be customized requirements any specifications | |||||||||||||||
| T Type: M30 / M31 / M33 / M35 | |||||||||||||||
| Part No. | T | M | E | A | H | MPQ | Part No. | T | M | E | A | H | MPQ | ||
| 1 | T50M30E35-0515T | 5.0 | 3.0 | 3.5 | 0.5 | 1.5 | 2000 | 20 | T55M30E40-5012TP | 5.5 | 3.0 | 4.0 | 5.0 | 1.2 | 850 |
| 2 | T50M30E35-2030T | 5.0 | 3.0 | 3.5 | 2.0 | 3.0 | 800 | 21 | T55M30E40-6715T | 5.5 | 3.0 | 4.0 | 6.7 | 1.5 | 600 |
| 3 | T50M30E35-3015TP | 5.0 | 3.0 | 3.5 | 3.0 | 1.5 | 1000 | 22 | T55M30E41-2015TP | 5.5 | 3.0 | 4.1 | 2.0 | 1.5 | 1200 |
| 4 | T50M30E35-4007TP | 5.0 | 3.0 | 3.5 | 4.0 | 0.7 | 1000 | 23 | T55M30E41-3515T | 5.5 | 3.0 | 4.1 | 3.5 | 1.5 | 1000 |
| 5 | T50M30E35-5015T | 5.0 | 3.0 | 3.5 | 5.0 | 1.5 | 750 | 24 | T55M30E42-3010TA | 5.5 | 3.0 | 4.2 | 3.0 | 1.0 | 1200 |
| 6 | T50M30E35-7015T | 5.0 | 3.0 | 3.5 | 7.0 | 1.5 | 600 | 25 | T55M30E42-3012T | 5.5 | 3.0 | 4.2 | 3.0 | 1.2 | 1200 |
| 7 | T50M30E35-8015TP | 5.0 | 3.0 | 3.5 | 8.0 | 1.5 | 400 | 26 | T55M30E42-8016TP | 5.5 | 3.0 | 4.2 | 8.0 | 1.6 | 400 |
| 8 | T50M30E40-1509TP | 5.0 | 3.0 | 4.0 | 1.5 | 0.9 | 1800 | 27 | T56M30E40-10015TP-A | 5.6 | 3.0 | 4.0 | 10.0 | 1.5 | 300 |
| 9 | T50M30E40-3409TP | 5.0 | 3.0 | 4.0 | 3.4 | 0.9 | 1000 | 28 | T60M30E00-5000TP | 6.0 | 3.0 | 0.0 | 5.0 | 0.0 | 800 |
| 10 | T50M30E40-5009TP | 5.0 | 3.0 | 4.0 | 5.0 | 0.9 | 800 | 29 | T60M30E41-1516TP | 6.0 | 3.0 | 4.1 | 1.5 | 1.6 | 1500 |
| 11 | T50M30E40-6609TP | 5.0 | 3.0 | 4.0 | 6.6 | 0.9 | 450 | 30 | T60M30E42-1516TP | 6.0 | 3.0 | 4.2 | 1.5 | 1.6 | 1500 |
| 12 | T50M30E40-8009TP | 5.0 | 3.0 | 4.0 | 8.0 | 0.9 | 400 | 31 | T60M30E42-5516T | 6.0 | 3.0 | 4.2 | 5.5 | 1.6 | 700 |
| 13 | T50M30E41-2516TP | 5.0 | 3.0 | 4.1 | 2.5 | 1.6 | 1200 | 32 | T52M31E38-4011TNPT | 5.2 | 3.1 | 3.8 | 4.0 | 1.1 | 800 |
| 14 | T50M30E41-5016T | 5.0 | 3.0 | 4.1 | 5.0 | 1.6 | 700 | 33 | T60M33E42-3014TNPT | 6.0 | 3.3 | 4.2 | 3.0 | 1.4 | 1200 |
| 15 | T50M30E42-4508T | 5.0 | 3.0 | 4.2 | 4.5 | 0.8 | 900 | 34 | T70M33E55-0521TNPT | 7.0 | 3.3 | 5.5 | 0.5 | 2.1 | 1800 |
| 16 | T50M30E42-4516T | 5.0 | 3.0 | 4.2 | 4.5 | 1.6 | 800 | 35 | T72M35E54-4016T | 7.2 | 3.5 | 5.4 | 4.0 | 1.6 | 800 |
| 17 | T55M30E40-11015TP | 5.5 | 3.0 | 4.0 | 11.0 | 1.5 | 300 | 36 | T72M35E54-4212TNPT | 7.2 | 3.5 | 5.4 | 4.2 | 1.2 | 1000 |
| 18 | T55M30E40-1515TP | 5.5 | 3.0 | 4.0 | 1.5 | 1.5 | 1200 | 37 | T70M36E56-1039TNPT | 7.0 | 3.6 | 5.6 | 1.0 | 3.9 | 1000 |
| 19 | T55M30E40-5008TP | 5.5 | 3.0 | 4.0 | 5.0 | 0.8 | 800 | 38 | |||||||
| Can be customized requirements any specifications | |||||||||||||||
| T Type: M40 / M50 / M52 | |||||||||||||||
| Part No. | T | M | E | A | H | MPQ | Part No. | T | M | E | A | H | MPQ | ||
| 1 | T70M40E55-12014TP | 7.0 | 4.0 | 5.5 | 12.0 | 1.4 | 200 | 10 | T70M43E55-0521TNPT | 7.0 | 4.3 | 5.5 | 0.5 | 2.1 | 1800 |
| 2 | T70M40E55-5016TNPT | 7.0 | 4.0 | 5.5 | 5.0 | 1.6 | 700 | 11 | T76M44E64-93095TNPT | 7.6 | 4.4 | 6.4 | 9.3 | 0.95 | 300 |
| 3 | T70M40E60-2018TP | 7.0 | 4.0 | 6.0 | 2.0 | 1.8 | 1300 | 12 | T80M44E64-77095TNPT | 8.0 | 4.4 | 6.4 | 7.7 | 0.95 | 450 |
| 4 | T80M40E50-18015TP | 8.0 | 4.0 | 5.0 | 18.0 | 1.5 | 100 | 13 | T80M50E70-2018TP | 8.0 | 5.0 | 7.0 | 2.0 | 1.8 | 1000 |
| 5 | T80M40E50-20015TP | 8.0 | 4.0 | 5.0 | 20.0 | 1.5 | 100 | 14 | T90M50E62-8016TP | 9.0 | 5.0 | 6.2 | 8.0 | 1.6 | 300 |
| 6 | T80M40E55-1612TP | 8.0 | 4.0 | 5.5 | 1.6 | 1.2 | 1700 | 15 | T90M50E70-3030T | 9.0 | 5.0 | 7.0 | 3.0 | 3.0 | 600 |
| 7 | T88M40E62-4815TP | 8.8 | 4.0 | 6.2 | 4.8 | 1.5 | 500 | 16 | T120M52E77-4009TNPT | 12.0 | 5.2 | 7.7 | 4.0 | 0.9 | 600 |
| 8 | T90M40E60-4014T | 9.0 | 4.0 | 6.0 | 4.0 | 1.4 | 700 | 17 | T120M52E77-5209TNPT | 12.0 | 5.2 | 7.7 | 5.2 | 0.9 | 500 |
| 9 | T90M40E62-8016TP | 9.0 | 4.0 | 6.2 | 8.0 | 1.6 | 300 | 18 | |||||||
| Can be customized requirements any specifications | |||||||||||||||
| H Type: M16 / M20 / M30 | |||||||||||||||
| Part No. | H | M | E | A | H | MPQ | Part No. | H | M | E | A | H | MPQ | ||
| 1 | H35M16E23-1508TP | 3.5 | 1.6 | 2.3 | 2.5 | 0.8 | 2000 | 10 | H45T30M20E25-014507TP | 4.5 | 2.0 | 2.5 | 2.1 | 0.7 | 1500 |
| 2 | H35M16E23-4008TP | 3.5 | 1.6 | 2.3 | 5.0 | 0.8 | 1300 | 11 | H45T32M20E25-017406TP | 4.5 | 2.0 | 2.5 | 2.39 | 0.6 | 1500 |
| 3 | H35M16E25-1710TP | 3.5 | 1.6 | 2.5 | 2.7 | 1.0 | 1700 | 12 | H50M20E30-6709TP | 5.0 | 2.0 | 3.0 | 7.35 | 0.9 | 650 |
| 4 | H35M16E25-3010TP | 3.5 | 1.6 | 2.5 | 4.0 | 1.0 | 1500 | 13 | H50M20T34E34-1511TP | 5.0 | 2.0 | 3.4 | 2.2 | 1.1 | 1500 |
| 5 | H35M16E25-4010TP | 3.5 | 1.6 | 2.5 | 5.0 | 1.0 | 1300 | 14 | H55M20E40-24507T | 5.5 | 2.0 | 4.0 | 3.1 | 0.7 | 1200 |
| 6 | H30M20E40-24507TP | 5.5 | 2.0 | 4.0 | 3.1 | 0.7 | 1200 | 15 | H55M20E40-6715T | 5.5 | 2.0 | 4.0 | 7.3 | 1.5 | 600 |
| 7 | H35M20E27-3908T | 3.5 | 2.0 | 2.7 | 5.4 | 0.8 | 1200 | 16 | H50T42M30E42-5015TP | 5.0 | 3.0 | 4.2 | 6.5 | 1.5 | 650 |
| 8 | H38M20E26-4008T | 3.8 | 2.0 | 2.6 | 4.8 | 0.8 | 1400 | 17 | H55T40M30E40-376211TP | 5.5 | 3.0 | 4.0 | 1.65 | 3.76 | 750 |
| 9 | H45M20E25-1606TP | 4.5 | 2.0 | 2.5 | 2.25 | 0.6 | 1500 | 18 | |||||||
| Can be customized requirements any specifications | |||||||||||||||
| K Type: M00 / M16 / M20 / M25 / M25 | |||||||||||||||
| Part No. | K | M | E | A | H | MPQ | Part No. | K | M | E | A | H | MPQ | ||
| 1 | K35M10E20-1510T | 3.5 | 1.0 | 2.0 | 1.5 | 1.0 | 2500 | 9 | K40M20E10-5011T4 | 4.0 | 2.0 | 1.0 | 5.0 | 1.1 | 900 |
| 2 | K35M14E18-2008T | 3.5 | 1.4 | 1.8 | 2.0 | 0.8 | 2500 | 10 | K40M20E35-4010T | 4.0 | 2.0 | 3.5 | 4.0 | 1.0 | 1500 |
| 3 | K33M16E00-5000TP | 3.3 | 1.6 | 0.0 | 5.0 | 0.0 | 1500 | 11 | K50M20E10-5011T | 5.0 | 2.0 | 1.0 | 5.0 | 1.1 | 880 |
| 4 | K30M20E10-5011TP | 3.0 | 2.0 | 1.0 | 5.0 | 1.1 | 1200 | 12 | K50M20E23-6610TP | 5.0 | 2.0 | 2.3 | 6.6 | 1.0 | 450 |
| 5 | K36M20E55-7935T | 3.6 | 2.0 | 5.5 | 7.9 | 3.5 | 400 | 13 | K50M20E30-9609T | 5.0 | 2.0 | 3.0 | 9.6 | 0.9 | 350 |
| 6 | K40M20D35-3010T | 4.0 | 2.0 | 3.5 | 3.0 | 1.0 | 1500 | 14 | K40M25E14-5008T | 4.0 | 2.5 | 1.4 | 5.0 | 0.8 | 900 |
| 7 | K40M20E10-5008TP | 4.0 | 2.0 | 1.0 | 5.0 | 0.8 | 900 | 15 | K55M25E315-4535TP | 5.5 | 2.5 | 3.15 | 4.5 | 3.5 | 600 |
| 8 | K40M20E10-5011T | 4.0 | 2.0 | 1.0 | 5.0 | 1.1 | 900 | 16 | K50M26E38-3008T | 5.0 | 2.6 | 3.8 | 3.0 | 0.8 | 1200 |
| Can be customized requirements any specifications | |||||||||||||||
| K Type: M30 / M40 / M50 | |||||||||||||||
| Part No. | K | M | E | A | H | MPQ | Part No. | K | M | E | A | H | MPQ | ||
| 1 | K50M30E00-8000T | 5.0 | 3.0 | 0.0 | 8.0 | 0.0 | 650 | 14 | K55M30E42-3016TP | 5.5 | 3.0 | 4.2 | 3.0 | 1.6 | 1200 |
| 2 | K50M30E10-5011TP | 5.0 | 3.0 | 1.0 | 5.0 | 1.1 | 880 | 15 | K55M30E42-8016TP | 5.5 | 3.0 | 4.2 | 8.0 | 1.6 | 400 |
| 3 | K50M30E10-6615TP | 5.0 | 3.0 | 1.0 | 6.6 | 1.5 | 450 | 16 | K60M30E30-10513T | 6.0 | 3.0 | 3.0 | 10.5 | 1.3 | 300 |
| 4 | K50M30E15-5011TP | 5.0 | 3.0 | 1.5 | 5.0 | 1.1 | 880 | 17 | K60M30E30-65513T | 6.0 | 3.0 | 3.0 | 6.55 | 1.3 | 550 |
| 5 | K50M30E15-8511TP | 5.0 | 3.0 | 1.5 | 8.5 | 1.1 | 400 | 18 | K60M30E415-65513T | 6.0 | 3.0 | 4.15 | 6.55 | 1.3 | 550 |
| 6 | K50M30E23-11015T | 5.0 | 3.0 | 2.3 | 11.0 | 1.5 | 300 | 19 | K70M30E00-7000TP-REV.1 | 7.0 | 3.0 | 0.0 | 7.0 | 0.0 | 700 |
| 7 | K50M30E23-15015TP | 5.0 | 3.0 | 2.3 | 15.0 | 1.5 | 150 | 20 | K88M40E62-4425TP | 8.8 | 4.0 | 6.2 | 4.4 | 2.5 | 550 |
| 8 | K50M30E26-4035T | 5.0 | 3.0 | 2.6 | 4.0 | 3.5 | 500 | 21 | K90M40E62-11016TP | 9.0 | 4.0 | 6.2 | 11.0 | 1.6 | 250 |
| 9 | K50M30E30-4215T | 5.0 | 3.0 | 3.0 | 4.2 | 1.5 | 850 | 22 | K90M50E00-12000TP | 9.0 | 5.0 | 0.0 | 12.0 | 0.0 | 250 |
| 10 | K50M30E32-6415T | 5.0 | 3.0 | 3.2 | 6.4 | 1.5 | 450 | 23 | K90M50E62-10016TP | 9.0 | 5.0 | 6.2 | 10.0 | 1.6 | 250 |
| 11 | K50M30E35-6626TP | 5.0 | 3.0 | 3.5 | 6.6 | 2.6 | 500 | 24 | K90M50E62-13016TP | 9.0 | 5.0 | 6.2 | 13.0 | 1.6 | 200 |
| 12 | K55M30E315-5235TP | 5.5 | 3.0 | 3.15 | 5.2 | 3.5 | 600 | 25 | K90M50E62-17516TP | 9.0 | 5.0 | 6.2 | 17.5 | 1.6 | 100 |
| 13 | K55M30E42-11016TP | 5.5 | 3.0 | 4.2 | 11.0 | 1.6 | 300 | 26 | K90M50E62-4516TP | 9.0 | 5.0 | 6.2 | 4.5 | 1.6 | 600 |
| Can be customized requirements any specifications | |||||||||||||||
| ST Type | |||||||||||||||
| Part No. | ST | M | E | A | H | MPQ | Part No. | ST | M | E | A | H | MPQ | ||
| 1 | ST20M00E15-0808T | 2.0 | 0.0 | 1.5 | 0.8 | 0.8 | 4000 | 4 | ST70T40M00E40-20016T | 7.0 | 0.0 | 4.0 | 20.0 | 1.6 | 100 |
| 2 | ST40M00E20-5530T | 4.0 | 0.0 | 1.46 | 5.5 | 3.0 | 600 | 5 | ST70T40M00E40-20016T-R | 7.0 | 0 | 4.0 | 20.0 | 1.6 | 100 |
| 3 | ST50M00E30-18014T | 5.0 | 1.0 | 3.0 | 18.0 | 1.4 | 150 | 6 | |||||||
| Can be customized requirements any specifications | |||||||||||||||
| U Type | |||||||||||||||
| Part No. | U | M | E | A | H | MPQ | Part No. | U | M | E | A | H | MPQ | ||
| 1 | U34T30M20E08-3007TP | 3.4 | 2.0 | 0.8 | 3.0 | 0.7 | 2000 | 4 | U55T45M30E075-4010TP | 5.5 | 3.0 | 7.5 | 4.0 | 1.0 | 1000 |
| 2 | U40T25M20E10-5008BP | 4.0 | 2.0 | 1.0 | 5.8 | 0.8 | 700 | 5 | H45M30E30-10014TP | 6.0 | 3.0 | 3.0 | 11.4 | 1.4 | 300 |
| 3 | U50T32M20E10-031515TP | 5.0 | 2.0 | 1.0 | 3.85 | 1.5 | 1000 | 6 | H60M30E30-7014TP | 6.0 | 3.0 | 3.0 | 8.4 | 1.4 | 400 |
| Can be customized requirements any specifications | |||||||||||||||
| 6K Type | |||||||||||||
| Part No. | 6K | M1 | E | A | H | Part No. | 6K | M1 | E | A | H | ||
| 1 | 6K100M40E60-12360B | 10.0 | 4.0 | 6.0 | 12.3 | 6.0 | 21 | 6K60M30E50-96740SZN | 6.0 | 3.0 | 3.0 | 96.7 | 4.0 |
| 2 | 6K100M50E60-340120B | 10.0 | 5.0 | 6.0 | 34.0 | 12.0 | 22 | 6K60M40E40-12060B | 6.0 | 4.0 | 4.0 | 12.0 | 6.0 |
| 3 | 6K120M41E50-6050S | 12.0 | 4.1 | 5.0 | 8.5 | 5.0 | 23 | 6K60M40E40-12080B | 6.0 | 4.0 | 4.0 | 12.0 | 8.0 |
| 4 | 6K160M80E80-400150B | 16.0 | 8.0 | 8.0 | 40.0 | 15.0 | 24 | 6K60M40E40-16355B | 6.0 | 4.0 | 4.0 | 16.3 | 5.5 |
| 5 | 6K40M20E20-12530B | 4.0 | 2.0 | 2.0 | 12.5 | 3.0 | 25 | 6K60M40E40-18060B | 6.0 | 4.0 | 4.0 | 18.0 | 6.0 |
| 6 | 6K475M30E30-8060ZN | 4.75 | 3.0 | 3.0 | 8.0 | 6.0 | 26 | 6K70M40E40-41460B | 7.0 | 4.0 | 4.0 | 41.4 | 6.0 |
| 7 | 6K50M00E30-590105ZN | 5.0 | 0.0 | 3.0 | 15.0 | 10.5 | 27 | 6K80M40E40-6470B | 8.0 | 4.0 | 4.0 | 6.4 | 7.0 |
| 8 | 6K50M25E25-8050N | 5.0 | 2.5 | 2.5 | 8.0 | 5.0 | 28 | 6K80M40E50-12070B | 8.0 | 4.0 | 5.0 | 12.0 | 7.0 |
| 9 | 6K50M25E30-5060N | 5.0 | 2.5 | 3.0 | 5.0 | 6.0 | 29 | 6K80M40E50-12080B | 8.0 | 4.0 | 5.0 | 12.0 | 8.0 |
| 10 | 6K50M30E30-11560ZN | 5.0 | 3.0 | 3.0 | 11.5 | 6.0 | 30 | 6K80M40E50-21470B | 8.0 | 4.0 | 5.0 | 21.4 | 7.0 |
| 11 | 6K50M30E30-169550ZN | 5.0 | 3.0 | 3.0 | 16.95 | 5.0 | 31 | 6K80M40E50-31370B | 8.0 | 4.0 | 5.0 | 31.3 | 7.0 |
| 12 | 6K55M30E30-20580B | 5.5 | 3.0 | 3.0 | 20.5 | 8.0 | 32 | 6K80M40E50-59880ZN | 8.0 | 4.0 | 5.0 | 59.8 | 8.0 |
| 13 | 6K55M30E30-22060N | 5.5 | 3.0 | 3.0 | 22.0 | 6.0 | 33 | 6K80M40E50-7550B | 8.0 | 4.0 | 5.0 | 75 | 5.0 |
| 14 | 6K55M30E30-8060N | 5.5 | 3.0 | 3.0 | 8.0 | 6.0 | 34 | 6K80M40E50-8450B | 8.0 | 4.0 | 5.0 | 8.4 | 5.0 |
| 15 | 6K55M30E40-15060BN | 5.5 | 3.0 | 4.0 | 15.0 | 6.0 | 35 | 6K80M50E50-11060B | 8.0 | 50 | 5.0 | 11.0 | 6.0 |
| 16 | 6K60M30E30-33060ZN | 6.0 | 3.0 | 3.0 | 33.0 | 6.0 | 36 | 6K80M50E50-13040T | 8.0 | 50 | 5.0 | 13.0 | 4.0 |
| 17 | 6K60M30E30-38445ZN | 6.0 | 3.0 | 3.0 | 38.4 | 4.5 | 37 | 6K80M50E50-43460B | 8.0 | 50 | 5.0 | 43.4 | 6.0 |
| 18 | 6K60M30E30-41260ZN | 6.0 | 3.0 | 3.0 | 41.2 | 6.0 | 38 | 6K80M50E60-28060B | 8.0 | 50 | 6.0 | 28.0 | 6.0 |
| 19 | 6K60M30E30-8140B | 6.0 | 3.0 | 3.0 | 8.1 | 4.0 | 39 | 6K90M50E50-46090NI | 9.0 | 5.0 | 5.0 | 46.0 | 9.0 |
| 20 | 6K60M30E50-1009100ZN | 6.0 | 3.0 | 5.0 | 100.9 | 10.0 | 40 | ||||||
| Can be customized requirements any specifications | |||||||||||||
| 6KT Type | |||||||||||||
| Part No. | 6KT | M1 | E | A | H | Part No. | 6KT | M1 | E | A | H | ||
| 1 | 6K120M50E50-45080B | 12.0 | 5.0 | 5.0 | 47.1 | 8.0 | 10 | 6K60T45M30E30-7750B | 6.0 | 3.0 | 3.0 | 8.5 | 5.0 |
| 2 | 6K50T40M30E30-14567DBT_R2 | 5.0 | 3.0 | 3.0 | 15.5 | 6.7 | 11 | 6K60T45M30E40-8360ZN | 6.0 | 3.0 | 4.0 | 9.0 | 6.0 |
| 3 | 6K50T40M30E30-33767DBT_R2 | 5.0 | 3.0 | 3.0 | 34.7 | 6.7 | 12 | 6K80M30E40-12070ZN | 8.0 | 3.0 | 4.0 | 12.0 | 7.0 |
| 4 | 6K50T40M30E30-45967DBT_R2 | 5.0 | 3.0 | 3.0 | 46.9 | 6.7 | 13 | 6K80M30E50-5450ZN | 8.0 | 3.0 | 5.0 | 5.4 | 5.0 |
| 5 | 6K50T40M30E30-49567DBT_R2 | 5.0 | 3.0 | 3.0 | 50.5 | 6.7 | 14 | 6K80M40E40-10245B | 8.0 | 4.0 | 4.0 | 10.2 | 4.5 |
| 6 | 6K50T40M30E30-6267DBT_R2 | 5.0 | 3.0 | 3.0 | 7.2 | 6.7 | 15 | 6K80M40E40-53470SZ | 8.0 | 4.0 | 4.0 | 53.4 | 7.0 |
| 7 | 6K50T40M30E30-9967DBT_R2 | 5.0 | 3.0 | 3.0 | 10.9 | 6.7 | 16 | 6K80T44M30E40-4860ZN | 8.0 | 3.0 | 4.0 | 5.5 | 6.0 |
| 8 | 6K60M30E40-7264B | 6.0 | 3.0 | 4.0 | 8.6 | 6.4 | 17 | 6K80T56M40E40-15251B | 8.0 | 4.0 | 4.0 | 16.6 | 5.1 |
| 9 | 6K60T41M30E30-41440ZN | 6.0 | 3.0 | 3.0 | 42.8 | 4.0 | 18 | ||||||
| Can be customized requirements any specifications | |||||||||||||
| 6KU Type | |||||||||||||
| Part No. | 6KU | M1 | M2 | A | Part No. | 6KU | M1 | M2 | A | ||||
| 1 | 6K100M50M50E00-35000B | 10.0 | 5.0 | 5.0 | 35.0 | 3 | 6K58M30E00-22000B | 5.0 | 3.0 | 3.0 | 22.0 | ||
| 2 | 6K100M60M50E00-24500B | 10.0 | 6.0 | 5.0 | 24.5 | 4 | 6K70M40E00-33000B | 7.0 | 4.0 | 3.0 | 33.0 | ||
| Can be customized requirements any specifications | |||||||||||||
| 6KH Type | |||||||||||||
| Part No. | 6KH | M1 | M2 | A | Part No. | 6KH | M | E | A | H | |||
| 1 | 6K55T40M30E30-12040B | 5.5 | 4.0 | 4.0 | 12.0 | 2 | |||||||
| Can be customized requirements any specifications | |||||||||||||
The below drawing is examples of applications for Laptop PCB.
