SMT螺帽(銅柱)
這是一種表面自動安裝螺母噴嘴結構，用於拉動螺母以便表面自動安裝操作，包括：一個中空管，一端帶有蓋子的端口，一個蓋子在兩側與兩個弧形吸力相反的一側孔。應用時，蓋子可以掩蓋一個空心螺母，並且在吸孔的邊緣是螺母固體材料的一側，以提供足夠的吸力拉拔螺母，適用於各類表面自動安裝工程。本產品設計簡單，易於製造，易於表面自動安裝螺母生產，降低成本，並且可以在實踐中徹底改進已知結構沖壓包裝的麻煩，並且在廢物處理中也不符合環保要求。因為不同規格的螺母，可能有不同的開口，但邊緣仍然是一些材料的厚度，所以產品一定要考慮好，只要在應用中的咬嘴，不經常更換，操作非常方便。本產品噴嘴，精益，可重複使用，降低成本並且不會產生廢棄物丟棄和表面自動安裝螺母噴嘴結構，具有批量生產，降低成本的價值。
產品優點
- 規格化的設計，節省設計的時間與費用。
- 由於規格化的大量生產，便宜的價格。
- 體積小、安全庫存、交貨迅速。
- 可電鍍金、電鍍環保錫，Re-flow的焊錫功能佳。

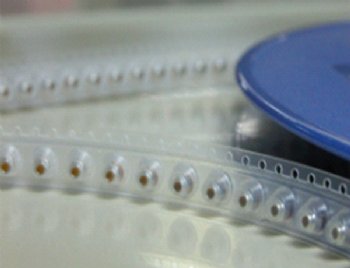

- 國際標準EIA膠帶包裝，生產效率高
- 客制化Nozzle 及 Nut 規格設計。
產品功能
- 材質：黃銅（符合RoHS標準）、#1215、#1144、SUS303
- 表面電鍍：Sn（3-5um）、Au <1"（Micro. Inch）、ZN(3um)、Nickel、DYE nlack treatment
- PCB附著力：> 20kgf，如果在PCB上製作通孔
- 標準螺釘型號：M16 /間距0.35mm; M20 /間距0.4mm; M25 /間距0.45mm; M30 /間距0.5mm ......
- 符合RoHS標準（RoHS 2.0）
國際標準EIA膠帶包裝，生產效率高。
客制化Nozzle 及 Nut 規格設計。
Nut & Stand_Off規格化的設計，節省設計的時間與費用。
因為螺帽規格不同，其開孔或有不同，但邊緣仍有一定之料厚，故本產品之吸嘴只要算好一定之間隙於應用上，無需經常更換，作業十分方便。
SMT自動化生產， 減少大量工時也大幅減少生產成本 。
可電鍍金、電鍍環保錫，Re-flow的焊錫功能佳。
印刷電路板的黏著強度高。
印刷電路板的黏著強度高。
產品規格
| K-Type | K-Type (00) | ||
| K: Nut OD |  |
T: Nut OD |  |
| M: 1.4/1.6/1.7/2.0/2.5/3.0/4.0/5.0... | M: 1.4/1.6/2.0/2.5/3.0/3.5/4.0/5.0... | ||
| P: Pitch: 0.3/0.35/0.4/0.5/0.7/0.8... | P: Pitch: 0.3/0.35/0.4/0.5/0.7/0.8... | ||
| B: Minimum Screw Depth | B: Minimum Screw Depth | ||
| E: Through Hole Diameter | E: 00 | ||
| A: Height Above PCB | A: Height Above PCB | ||
| H: Through Hole Height | H: 00 | ||
| T-Type | T-Type (NPT) | ||
| T: Nut OD |  |
T: Nut OD |  |
| M: 1.4/1.6/2.0/2.5/3.0/3.5/4.0/5.0... | M: ID-M (No Thread) | ||
| P: Pitch: 0.3/0.35/0.4/0.5/0.7/0.8... | P: No Pitch (Through Hole) | ||
| B: N/A | B: N/A | ||
| E: Through Hole Diameter | E: Through Hole Diameter | ||
| A: Height above PCB | A: Height above PCB | ||
| H: Height of PCB Through hole | H: Height of PCB Through hole | ||
| T-Type (00) | T-Type (NPT-00) | ||
| T: Nut OD |  |
T: Nut OD |  |
| M: 1.4/1.6/2.0/2.5/3.0/4.0/5.0... | M: ID-M (No Thread) | ||
| P: 0.3/0.35/0.4/0.45/0.5/0.7/0.8... | P: No Pitch (Through Hole) | ||
| B: N/A | B: N/A | ||
| E: 00 | E: 00 | ||
| A: Height above PCB | A: Height above PCB | ||
| H: 00 | H: 00 | ||
| H-Type | H-Type (NPT) | ||
| H: Nut OD |  |
U: Nut OD |  |
| T: Top OD Diameter | T: Top OD Diameter | ||
| M: 1.4/1.6/2.0/2.5/3.0/4.0/5.0... | M: ID-M (No Thread) | ||
| P: 0.3/0.35/0.4/0.45/0.5/0.7/0.8... | P: No Pitch (Through Hole) | ||
| E: Through Hole Diameter | E: Through Hole Diameter | ||
| A: Height above PCB | A: Height above PCB | ||
| H1: Height of Panel Through hole | H1: Height of Panel Through hole | ||
| H2: Height of PCB Through hole | H2: Height of PCB Through hole | ||
| U-Type | 6K (00)-Type | ||
| U: Nut OD |  |
6K: Nut OD |  |
| T: Top OD Diameter | M: 1.4/1.6/2.0/2.5/3.0/3.5/4.0/5.0... | ||
| M: M1.6/2.0/2.5/3.0/4.0/5.0 | P: Pitch: 0.3/0.35/0.4/0.5/0.7/0.8... | ||
| P: Pitch: 0.3/0.35/0.4/0.5/0.7/0.8... | B: N/A | ||
| B: Minimum screw depth | E: 00 | ||
| E: Through Hole Diameter | A: Height Above PCB | ||
| A: Height above PCB | H: 00 | ||
| H1: Height of Panel Through hole | -------- | ||
| H2: Height of PCB Through hole | -------- | ||
| 6K-Type | 6KT-Type | ||
| 6K: Nut OD |  |
6KT: Nut OD |  |
| T: N/A | T: Top OD Diameter | ||
| M1/M2: 2.0/2.5/3.0/4.0/5.0/6.0... | M1/M2: 2.0/2.5/3.0/4.0/5.0/6.0... | ||
| P1/P2: 0.4/0.45/0.5/0.7/0.8/1.0... | P1/P2: 0.4/0.45/0.5/0.7/0.8/1.0... | ||
| B: Minimum screw depth | B: Minimum screw depth | ||
| E: External thread (Outer Diameter) =(M2xP2) | E: External thread (Outer Diameter) =(M2xP2) | ||
| A: Height of above screw plate | A: Height of above screw plate | ||
| H: Height of External thread | H1: Height of Panel Through hole | ||
| N/A | H2: Height of External thread | ||
| 6KU-Type | 6KH-Type | ||
| 6KU: Nut OD |  |
6KH: Nut OD |  |
| T: N/A | T=(M1xP1) | ||
| M1/M2: 2.0/2.5/3.0/4.0/5.0/6.0... | M1/M2: 2.0/2.5/3.0/4.0/5.0/6.0... | ||
| P1/P2: 0.4/0.45/0.5/0.7/0.8/1.0... | P1/P2: 0.4/0.45/0.5/0.7/0.8/1.0... | ||
| B1: Minimum screw depth | E =(M2xP2) | ||
| B2: Minimum screw depth | A: Height of above screw plate | ||
| E: 00 | H1: Height of External thread | ||
| A: Height of above screw plate | H2: Height of External thread | ||
| ST-Type | |||||
| ST: Nut OD |  |
 |
 |
 |
 |
| T: Top OD Diameter | |||||
| M: 00 | |||||
| P: N/A | |||||
| E: Through Hole Diameter | |||||
| A: Height of above screw plate | |||||
| H1: Height of Panel Through hole | |||||
| H2: Height of PCB Through hole | |||||
Recommended solder area
料號結構
| T | 50 | M30 | E41 | - | 35 | 15 | T | -NP | |
| 〔1〕 | 〔2〕 | 〔3〕 | 〔4〕 | 〔5〕 | 〔6〕 | 〔7〕 | 〔8〕 | ||
| 〔1〕 | Type Series: K Type; T Type; H Type; U Type... | ||||||||
| 〔2〕 | 50 = ф5.0mm (35=ф3.5mm; 40=ф4.0mm; 45=ф4.5mm; 50=ф5.0mm; 55=ф5.5mm... ) | ||||||||
| 〔3〕 | M (Screw ID): M20 = ф2.0mm (M16=ф1.6mm; M17=ф1.7mm; M20=ф2.0mm; M25=ф2.5mm; M30=ф3.0mm...) P (Screw Pitch): M16 / 17 (P=0.35mm); M20 (P=0.40mm); M25 (P=0.45mm); M30 (P=0.5mm) ... |
||||||||
| 〔4〕 | E: E41 =ф4.1mm (Through Hole Height) | ||||||||
| 〔5〕 | A: 09 = 0.9mm; 35 = 3.5mm; 265 = 2.65mm (Height above PCB) | ||||||||
| 〔6〕 | H: 08 = 0.8mm; 10 = 1.0mm; 12 = 1.2mm; 15 = 1.5mm (Through Hole Height) | ||||||||
| 〔7〕 | T (Tin Plate); A (Au Plate); S = Stainless steel without plating (RoHS Compliant) | ||||||||
| 〔8〕 | -NP = No Screw Pitch | ||||||||
| 〔9〕 | -1= Customize for some shape | ||||||||
| T Type: M14 / M16 / M18 | |||||||||||||||
| Part No. | T | M | E | A | H | MPQ | Part No. | T | M | E | A | H | MPQ | ||
| 1 | T30M14E24-1515T | 3.0 | 1.4 | 2.4 | 1.5 | 1.5 | 2400 | 7 | T35M16E25-3511T | 3.5 | 1.6 | 2.5 | 3.5 | 1.1 | 1500 |
| 2 | T27M16E22-2108TNPT | 2.7 | 1.6 | 2.2 | 2.1 | 0.8 | 2500 | 8 | T35M16E27-2008T | 3.5 | 1.6 | 2.7 | 2.0 | 0.8 | 2500 |
| 3 | T30M16E20-1008TNP | 3.0 | 1.6 | 2.0 | 1.0 | 0.8 | 3300 | 9 | T35M16E27-3008T | 3.5 | 1.6 | 2.7 | 3.0 | 0.8 | 1800 |
| 4 | T35M16E20-1508TP | 3.5 | 1.6 | 2.0 | 1.5 | 0.8 | 3000 | 10 | T35M16E30-3511TP | 3.5 | 1.6 | 3.0 | 3.5 | 1.1 | 1500 |
| 5 | T35M16E20-4008TP | 3.5 | 1.6 | 2.0 | 4.0 | 0.8 | 1600 | 11 | T37M16E25-07175T | 3.7 | 1.6 | 2.5 | 0.7 | 1.75 | 2700 |
| 6 | T35M16E25-2511T | 3.5 | 1.6 | 2.5 | 2.5 | 1.1 | 2000 | 12 | T36M18E28-3511T | 3.6 | 1.8 | 2.8 | 3.5 | 1.1 | 1600 |
| Can be customized requirements any specifications (可依客戶的需求訂製任何規格) | |||||||||||||||
| T Type: M20 / M22 | |||||||||||||||
| Part No. | T | M | E | A | H | MPQ | Part No. | T | M | E | A | H | MPQ | ||
| 1 | T30M20E40-4005T | 3.0 | 2.0 | 4.0 | 4.0 | 0.5 | 1200 | 18 | T45M20E30-32152TP | 4.5 | 2.0 | 3.0 | 3.2 | 1.52 | 1000 |
| 2 | T35M20E27-2920TP | 3.5 | 2.0 | 2.7 | 2.9 | 2.0 | 1500 | 19 | T45M20E30-7515N | 4.5 | 2.0 | 3.0 | 7.5 | 1.43 | 550 |
| 3 | T36M20E28-3611TNP | 3.6 | 2.0 | 2.8 | 3.6 | 1.1 | 1600 | 20 | T45M20E31-27516TP | 4.5 | 2.0 | 3.1 | 2.75 | 1.6 | 1200 |
| 4 | T40M20E00-3200T | 4.0 | 2.0 | 0.0 | 3.2 | 0.0 | 1600 | 21 | T45M20E31-3008T | 4.5 | 2.0 | 3.1 | 3.0 | 0.8 | 1200 |
| 5 | T40M20E25-3515T | 4.0 | 2.0 | 2.5 | 3.5 | 1.5 | 1400 | 22 | T45M20E31-3016TP | 4.5 | 2.0 | 3.1 | 3.0 | 1.6 | 1200 |
| 6 | T40M20E27-4009TP | 4.0 | 2.0 | 2.7 | 4.0 | 0.9 | 1400 | 23 | T45M20E32-6411TP | 4.5 | 2.0 | 3.2 | 6.4 | 1.1 | 300 |
| 7 | T40M20E29-0510TNPT | 4.0 | 2.0 | 2.9 | 0.5 | 1.0 | 4000 | 24 | T50M20E30-14506T | 5.0 | 2.0 | 3.0 | 1.45 | 0.6 | 1800 |
| 8 | T40M20E29-0510TP | 4.0 | 2.0 | 2.9 | 0.5 | 1.0 | 4000 | 25 | T50M20E30-14508T | 5.0 | 2.0 | 3.0 | 1.45 | 0.8 | 1800 |
| 9 | T40M20E29-3511TP-B | 4.0 | 2.0 | 2.9 | 3.5 | 1.1 | 1200 | 26 | T50M20E30-1509T | 5.0 | 2.0 | 3.0 | 1.5 | 0.9 | 1800 |
| 10 | T40M20E29-5011TP | 4.0 | 2.0 | 2.9 | 5.0 | 1.1 | 800 | 27 | T50M20E30-4409T | 5.0 | 2.0 | 3.0 | 4.4 | 0.9 | 850 |
| 11 | T40M20E29-7011T | 4.0 | 2.0 | 2.9 | 7.0 | 1.1 | 600 | 28 | T50M20E30-6709T | 5.0 | 2.0 | 3.0 | 6.7 | 0.9 | 450 |
| 12 | T40M20E31-4416T | 4.0 | 2.0 | 3.1 | 4.4 | 1.6 | 800 | 29 | T50M20E35-0315TP | 5.0 | 2.0 | 3.5 | 0.3 | 1.5 | 2000 |
| 13 | T40M20E29-5809TP | 4.0 | 2.0 | 2.9 | 5.8 | 0.9 | 750 | 30 | T55M20E40-0510T | 5.5 | 2.0 | 4.0 | 0.5 | 1.0 | 2700 |
| 14 | T435M20E28-1514TP | 4.35 | 2.0 | 2.8 | 1.5 | 1.4 | 1600 | 31 | T55M20E40-0510TNP | 5.5 | 2.0 | 4.0 | 0.5 | 1.0 | 2700 |
| 15 | T435M20E28-7014TP | 4.35 | 2.0 | 2.8 | 7.0 | 1.4 | 550 | 32 | T56M20E41-3015TP | 5.6 | 2.0 | 4.1 | 3.0 | 1.5 | 1200 |
| 16 | T45M20E26-1608TP | 4.5 | 2.0 | 2.6 | 1.6 | 0.8 | 1600 | 33 | T40M22E27-4009TNPT | 4.0 | 2.2 | 2.7 | 4.0 | 0.9 | 1400 |
| 17 | T45M20E26-26515TP | 4.5 | 2.0 | 2.6 | 2.65 | 1.5 | 1200 | 34 | T45M22E32-8608TNPT | 4.5 | 2.2 | 3.2 | 8.6 | 0.8 | 500 |
| Can be customized requirements any specifications (可依客戶的需求訂製任何規格) | |||||||||||||||
| T Type: M25 / M26 / M27 / M28 | |||||||||||||||
| Part No. | T | M | E | A | H | MPQ | Part No. | T | M | E | A | H | MPQ | ||
| 1 | T40M25E35-07514TP | 4.0 | 2.5 | 3.5 | 0.75 | 1.4 | 3000 | 10 | T55M25E40-2020T | 5.5 | 2.5 | 4.0 | 2.0 | 2.0 | 1200 |
| 2 | T45M25E35-0525TP-B | 4.5 | 2.5 | 3.5 | 0.5 | 2.5 | 1500 | 11 | T55M25E40-5015TP | 5.5 | 2.5 | 4.0 | 5.0 | 1.5 | 750 |
| 3 | T50M25E33-10015TP | 5.0 | 2.5 | 3.3 | 10.0 | 1.5 | 300 | 12 | T60M25E31-1516T | 6.0 | 2.5 | 3.1 | 1.5 | 1.6 | 1200 |
| 4 | T50M25E33-5015T | 5.0 | 2.5 | 3.3 | 5.0 | 1.5 | 750 | 13 | T60M25E31-4416TP | 6.0 | 2.5 | 3.1 | 4.4 | 1.6 | 800 |
| 5 | T50M25E33-8015TP | 5.0 | 2.5 | 3.3 | 8.0 | 1.5 | 400 | 14 | T52M26E42-11015TNP | 5.2 | 2.6 | 4.2 | 11.0 | 1.5 | 300 |
| 6 | T50M25E35-0328TP | 5.0 | 2.5 | 3.5 | 0.3 | 2.8 | 1600 | 15 | T50M27E335-5020TNPT | 5.0 | 2.7 | 3.35 | 5.0 | 2.0 | 500 |
| 7 | T50M25E36-3011TP | 5.0 | 2.5 | 3.6 | 3.0 | 1.1 | 1200 | 16 | T50M27E36-6015TNPT | 5.0 | 2.7 | 3.6 | 6.0 | 1.5 | 450 |
| 8 | T50M25E36-5009TP | 5.0 | 2.5 | 3.6 | 5.0 | 0.9 | 800 | 17 | T55M27E32-5020TP | 5.5 | 2.7 | 3.2 | 5.0 | 2.0 | 750 |
| 9 | T55M25E40-2015TP | 5.5 | 2.5 | 4.0 | 2.0 | 1.5 | 1200 | 18 | |||||||
| Can be customized requirements any specifications (可依客戶的需求訂製任何規格) | |||||||||||||||
| T Type: M30 / M31 / M33 / M35 | |||||||||||||||
| Part No. | T | M | E | A | H | MPQ | Part No. | T | M | E | A | H | MPQ | ||
| 1 | T50M30E35-0515T | 5.0 | 3.0 | 3.5 | 0.5 | 1.5 | 2000 | 20 | T55M30E40-5012TP | 5.5 | 3.0 | 4.0 | 5.0 | 1.2 | 850 |
| 2 | T50M30E35-2030T | 5.0 | 3.0 | 3.5 | 2.0 | 3.0 | 800 | 21 | T55M30E40-6715T | 5.5 | 3.0 | 4.0 | 6.7 | 1.5 | 600 |
| 3 | T50M30E35-3015TP | 5.0 | 3.0 | 3.5 | 3.0 | 1.5 | 1000 | 22 | T55M30E41-2015TP | 5.5 | 3.0 | 4.1 | 2.0 | 1.5 | 1200 |
| 4 | T50M30E35-4007TP | 5.0 | 3.0 | 3.5 | 4.0 | 0.7 | 1000 | 23 | T55M30E41-3515T | 5.5 | 3.0 | 4.1 | 3.5 | 1.5 | 1000 |
| 5 | T50M30E35-5015T | 5.0 | 3.0 | 3.5 | 5.0 | 1.5 | 750 | 24 | T55M30E42-3010TA | 5.5 | 3.0 | 4.2 | 3.0 | 1.0 | 1200 |
| 6 | T50M30E35-7015T | 5.0 | 3.0 | 3.5 | 7.0 | 1.5 | 600 | 25 | T55M30E42-3012T | 5.5 | 3.0 | 4.2 | 3.0 | 1.2 | 1200 |
| 7 | T50M30E35-8015TP | 5.0 | 3.0 | 3.5 | 8.0 | 1.5 | 400 | 26 | T55M30E42-8016TP | 5.5 | 3.0 | 4.2 | 8.0 | 1.6 | 400 |
| 8 | T50M30E40-1509TP | 5.0 | 3.0 | 4.0 | 1.5 | 0.9 | 1800 | 27 | T56M30E40-10015TP-A | 5.6 | 3.0 | 4.0 | 10.0 | 1.5 | 300 |
| 9 | T50M30E40-3409TP | 5.0 | 3.0 | 4.0 | 3.4 | 0.9 | 1000 | 28 | T60M30E00-5000TP | 6.0 | 3.0 | 0.0 | 5.0 | 0.0 | 800 |
| 10 | T50M30E40-5009TP | 5.0 | 3.0 | 4.0 | 5.0 | 0.9 | 800 | 29 | T60M30E41-1516TP | 6.0 | 3.0 | 4.1 | 1.5 | 1.6 | 1500 |
| 11 | T50M30E40-6609TP | 5.0 | 3.0 | 4.0 | 6.6 | 0.9 | 450 | 30 | T60M30E42-1516TP | 6.0 | 3.0 | 4.2 | 1.5 | 1.6 | 1500 |
| 12 | T50M30E40-8009TP | 5.0 | 3.0 | 4.0 | 8.0 | 0.9 | 400 | 31 | T60M30E42-5516T | 6.0 | 3.0 | 4.2 | 5.5 | 1.6 | 700 |
| 13 | T50M30E41-2516TP | 5.0 | 3.0 | 4.1 | 2.5 | 1.6 | 1200 | 32 | T52M31E38-4011TNPT | 5.2 | 3.1 | 3.8 | 4.0 | 1.1 | 800 |
| 14 | T50M30E41-5016T | 5.0 | 3.0 | 4.1 | 5.0 | 1.6 | 700 | 33 | T60M33E42-3014TNPT | 6.0 | 3.3 | 4.2 | 3.0 | 1.4 | 1200 |
| 15 | T50M30E42-4508T | 5.0 | 3.0 | 4.2 | 4.5 | 0.8 | 900 | 34 | T70M33E55-0521TNPT | 7.0 | 3.3 | 5.5 | 0.5 | 2.1 | 1800 |
| 16 | T50M30E42-4516T | 5.0 | 3.0 | 4.2 | 4.5 | 1.6 | 800 | 35 | T72M35E54-4016T | 7.2 | 3.5 | 5.4 | 4.0 | 1.6 | 800 |
| 17 | T55M30E40-11015TP | 5.5 | 3.0 | 4.0 | 11.0 | 1.5 | 300 | 36 | T72M35E54-4212TNPT | 7.2 | 3.5 | 5.4 | 4.2 | 1.2 | 1000 |
| 18 | T55M30E40-1515TP | 5.5 | 3.0 | 4.0 | 1.5 | 1.5 | 1200 | 37 | T70M36E56-1039TNPT | 7.0 | 3.6 | 5.6 | 1.0 | 3.9 | 1000 |
| 19 | T55M30E40-5008TP | 5.5 | 3.0 | 4.0 | 5.0 | 0.8 | 800 | 38 | |||||||
| Can be customized requirements any specifications (可依客戶的需求訂製任何規格) | |||||||||||||||
| T Type: M40 / M50 / M52 | |||||||||||||||
| Part No. | T | M | E | A | H | MPQ | Part No. | T | M | E | A | H | MPQ | ||
| 1 | T70M40E55-12014TP | 7.0 | 4.0 | 5.5 | 12.0 | 1.4 | 200 | 10 | T70M43E55-0521TNPT | 7.0 | 4.3 | 5.5 | 0.5 | 2.1 | 1800 |
| 2 | T70M40E55-5016TNPT | 7.0 | 4.0 | 5.5 | 5.0 | 1.6 | 700 | 11 | T76M44E64-93095TNPT | 7.6 | 4.4 | 6.4 | 9.3 | 0.95 | 300 |
| 3 | T70M40E60-2018TP | 7.0 | 4.0 | 6.0 | 2.0 | 1.8 | 1300 | 12 | T80M44E64-77095TNPT | 8.0 | 4.4 | 6.4 | 7.7 | 0.95 | 450 |
| 4 | T80M40E50-18015TP | 8.0 | 4.0 | 5.0 | 18.0 | 1.5 | 100 | 13 | T80M50E70-2018TP | 8.0 | 5.0 | 7.0 | 2.0 | 1.8 | 1000 |
| 5 | T80M40E50-20015TP | 8.0 | 4.0 | 5.0 | 20.0 | 1.5 | 100 | 14 | T90M50E62-8016TP | 9.0 | 5.0 | 6.2 | 8.0 | 1.6 | 300 |
| 6 | T80M40E55-1612TP | 8.0 | 4.0 | 5.5 | 1.6 | 1.2 | 1700 | 15 | T90M50E70-3030T | 9.0 | 5.0 | 7.0 | 3.0 | 3.0 | 600 |
| 7 | T88M40E62-4815TP | 8.8 | 4.0 | 6.2 | 4.8 | 1.5 | 500 | 16 | T120M52E77-4009TNPT | 12.0 | 5.2 | 7.7 | 4.0 | 0.9 | 600 |
| 8 | T90M40E60-4014T | 9.0 | 4.0 | 6.0 | 4.0 | 1.4 | 700 | 17 | T120M52E77-5209TNPT | 12.0 | 5.2 | 7.7 | 5.2 | 0.9 | 500 |
| 9 | T90M40E62-8016TP | 9.0 | 4.0 | 6.2 | 8.0 | 1.6 | 300 | 18 | |||||||
| Can be customized requirements any specifications (可依客戶的需求訂製任何規格) | |||||||||||||||
| H Type: M16 / M20 / M30 | |||||||||||||||
| Part No. | H | M | E | A | H | MPQ | Part No. | H | M | E | A | H | MPQ | ||
| 1 | H35M16E23-1508TP | 3.5 | 1.6 | 2.3 | 2.5 | 0.8 | 2000 | 10 | H45T30M20E25-014507TP | 4.5 | 2.0 | 2.5 | 2.1 | 0.7 | 1500 |
| 2 | H35M16E23-4008TP | 3.5 | 1.6 | 2.3 | 5.0 | 0.8 | 1300 | 11 | H45T32M20E25-017406TP | 4.5 | 2.0 | 2.5 | 2.39 | 0.6 | 1500 |
| 3 | H35M16E25-1710TP | 3.5 | 1.6 | 2.5 | 2.7 | 1.0 | 1700 | 12 | H50M20E30-6709TP | 5.0 | 2.0 | 3.0 | 7.35 | 0.9 | 650 |
| 4 | H35M16E25-3010TP | 3.5 | 1.6 | 2.5 | 4.0 | 1.0 | 1500 | 13 | H50M20T34E34-1511TP | 5.0 | 2.0 | 3.4 | 2.2 | 1.1 | 1500 |
| 5 | H35M16E25-4010TP | 3.5 | 1.6 | 2.5 | 5.0 | 1.0 | 1300 | 14 | H55M20E40-24507T | 5.5 | 2.0 | 4.0 | 3.1 | 0.7 | 1200 |
| 6 | H30M20E40-24507TP | 5.5 | 2.0 | 4.0 | 3.1 | 0.7 | 1200 | 15 | H55M20E40-6715T | 5.5 | 2.0 | 4.0 | 7.3 | 1.5 | 600 |
| 7 | H35M20E27-3908T | 3.5 | 2.0 | 2.7 | 5.4 | 0.8 | 1200 | 16 | H50T42M30E42-5015TP | 5.0 | 3.0 | 4.2 | 6.5 | 1.5 | 650 |
| 8 | H38M20E26-4008T | 3.8 | 2.0 | 2.6 | 4.8 | 0.8 | 1400 | 17 | H55T40M30E40-376211TP | 5.5 | 3.0 | 4.0 | 1.65 | 3.76 | 750 |
| 9 | H45M20E25-1606TP | 4.5 | 2.0 | 2.5 | 2.25 | 0.6 | 1500 | 18 | |||||||
| Can be customized requirements any specifications (可依客戶的需求訂製任何規格) | |||||||||||||||
| K Type: M00 / M16 / M20 / M25 / M25 | |||||||||||||||
| Part No. | K | M | E | A | H | MPQ | Part No. | K | M | E | A | H | MPQ | ||
| 1 | K35M10E20-1510T | 3.5 | 1.0 | 2.0 | 1.5 | 1.0 | 2500 | 9 | K40M20E10-5011T4 | 4.0 | 2.0 | 1.0 | 5.0 | 1.1 | 900 |
| 2 | K35M14E18-2008T | 3.5 | 1.4 | 1.8 | 2.0 | 0.8 | 2500 | 10 | K40M20E35-4010T | 4.0 | 2.0 | 3.5 | 4.0 | 1.0 | 1500 |
| 3 | K33M16E00-5000TP | 3.3 | 1.6 | 0.0 | 5.0 | 0.0 | 1500 | 11 | K50M20E10-5011T | 5.0 | 2.0 | 1.0 | 5.0 | 1.1 | 880 |
| 4 | K30M20E10-5011TP | 3.0 | 2.0 | 1.0 | 5.0 | 1.1 | 1200 | 12 | K50M20E23-6610TP | 5.0 | 2.0 | 2.3 | 6.6 | 1.0 | 450 |
| 5 | K36M20E55-7935T | 3.6 | 2.0 | 5.5 | 7.9 | 3.5 | 400 | 13 | K50M20E30-9609T | 5.0 | 2.0 | 3.0 | 9.6 | 0.9 | 350 |
| 6 | K40M20D35-3010T | 4.0 | 2.0 | 3.5 | 3.0 | 1.0 | 1500 | 14 | K40M25E14-5008T | 4.0 | 2.5 | 1.4 | 5.0 | 0.8 | 900 |
| 7 | K40M20E10-5008TP | 4.0 | 2.0 | 1.0 | 5.0 | 0.8 | 900 | 15 | K55M25E315-4535TP | 5.5 | 2.5 | 3.15 | 4.5 | 3.5 | 600 |
| 8 | K40M20E10-5011T | 4.0 | 2.0 | 1.0 | 5.0 | 1.1 | 900 | 16 | K50M26E38-3008T | 5.0 | 2.6 | 3.8 | 3.0 | 0.8 | 1200 |
| Can be customized requirements any specifications (可依客戶的需求訂製任何規格) | |||||||||||||||
| K Type: M30 / M40 / M50 | |||||||||||||||
| Part No. | K | M | E | A | H | MPQ | Part No. | K | M | E | A | H | MPQ | ||
| 1 | K50M30E00-8000T | 5.0 | 3.0 | 0.0 | 8.0 | 0.0 | 650 | 14 | K55M30E42-3016TP | 5.5 | 3.0 | 4.2 | 3.0 | 1.6 | 1200 |
| 2 | K50M30E10-5011TP | 5.0 | 3.0 | 1.0 | 5.0 | 1.1 | 880 | 15 | K55M30E42-8016TP | 5.5 | 3.0 | 4.2 | 8.0 | 1.6 | 400 |
| 3 | K50M30E10-6615TP | 5.0 | 3.0 | 1.0 | 6.6 | 1.5 | 450 | 16 | K60M30E30-10513T | 6.0 | 3.0 | 3.0 | 10.5 | 1.3 | 300 |
| 4 | K50M30E15-5011TP | 5.0 | 3.0 | 1.5 | 5.0 | 1.1 | 880 | 17 | K60M30E30-65513T | 6.0 | 3.0 | 3.0 | 6.55 | 1.3 | 550 |
| 5 | K50M30E15-8511TP | 5.0 | 3.0 | 1.5 | 8.5 | 1.1 | 400 | 18 | K60M30E415-65513T | 6.0 | 3.0 | 4.15 | 6.55 | 1.3 | 550 |
| 6 | K50M30E23-11015T | 5.0 | 3.0 | 2.3 | 11.0 | 1.5 | 300 | 19 | K70M30E00-7000TP-REV.1 | 7.0 | 3.0 | 0.0 | 7.0 | 0.0 | 700 |
| 7 | K50M30E23-15015TP | 5.0 | 3.0 | 2.3 | 15.0 | 1.5 | 150 | 20 | K88M40E62-4425TP | 8.8 | 4.0 | 6.2 | 4.4 | 2.5 | 550 |
| 8 | K50M30E26-4035T | 5.0 | 3.0 | 2.6 | 4.0 | 3.5 | 500 | 21 | K90M40E62-11016TP | 9.0 | 4.0 | 6.2 | 11.0 | 1.6 | 250 |
| 9 | K50M30E30-4215T | 5.0 | 3.0 | 3.0 | 4.2 | 1.5 | 850 | 22 | K90M50E00-12000TP | 9.0 | 5.0 | 0.0 | 12.0 | 0.0 | 250 |
| 10 | K50M30E32-6415T | 5.0 | 3.0 | 3.2 | 6.4 | 1.5 | 450 | 23 | K90M50E62-10016TP | 9.0 | 5.0 | 6.2 | 10.0 | 1.6 | 250 |
| 11 | K50M30E35-6626TP | 5.0 | 3.0 | 3.5 | 6.6 | 2.6 | 500 | 24 | K90M50E62-13016TP | 9.0 | 5.0 | 6.2 | 13.0 | 1.6 | 200 |
| 12 | K55M30E315-5235TP | 5.5 | 3.0 | 3.15 | 5.2 | 3.5 | 600 | 25 | K90M50E62-17516TP | 9.0 | 5.0 | 6.2 | 17.5 | 1.6 | 100 |
| 13 | K55M30E42-11016TP | 5.5 | 3.0 | 4.2 | 11.0 | 1.6 | 300 | 26 | K90M50E62-4516TP | 9.0 | 5.0 | 6.2 | 4.5 | 1.6 | 600 |
| Can be customized requirements any specifications (可依客戶的需求訂製任何規格) | |||||||||||||||
| ST Type | |||||||||||||||
| Part No. | ST | M | E | A | H | MPQ | Part No. | ST | M | E | A | H | MPQ | ||
| 1 | ST20M00E15-0808T | 2.0 | 0.0 | 1.5 | 0.8 | 0.8 | 4000 | 4 | ST70T40M00E40-20016T | 7.0 | 0.0 | 4.0 | 20.0 | 1.6 | 100 |
| 2 | ST40M00E20-5530T | 4.0 | 0.0 | 1.46 | 5.5 | 3.0 | 600 | 5 | ST70T40M00E40-20016T-R | 7.0 | 0 | 4.0 | 20.0 | 1.6 | 100 |
| 3 | ST50M00E30-18014T | 5.0 | 1.0 | 3.0 | 18.0 | 1.4 | 150 | 6 | |||||||
| Can be customized requirements any specifications (可依客戶的需求訂製任何規格) | |||||||||||||||
| U Type | |||||||||||||||
| Part No. | U | M | E | A | H | MPQ | Part No. | U | M | E | A | H | MPQ | ||
| 1 | U34T30M20E08-3007TP | 3.4 | 2.0 | 0.8 | 3.0 | 0.7 | 2000 | 4 | U55T45M30E075-4010TP | 5.5 | 3.0 | 7.5 | 4.0 | 1.0 | 1000 |
| 2 | U40T25M20E10-5008BP | 4.0 | 2.0 | 1.0 | 5.8 | 0.8 | 700 | 5 | H45M30E30-10014TP | 6.0 | 3.0 | 3.0 | 11.4 | 1.4 | 300 |
| 3 | U50T32M20E10-031515TP | 5.0 | 2.0 | 1.0 | 3.85 | 1.5 | 1000 | 6 | H60M30E30-7014TP | 6.0 | 3.0 | 3.0 | 8.4 | 1.4 | 400 |
| Can be customized requirements any specifications (可依客戶的需求訂製任何規格) | |||||||||||||||
| 6K Type | |||||||||||||
| Part No. | 6K | M1 | E | A | H | Part No. | 6K | M1 | E | A | H | ||
| 1 | 6K100M40E60-12360B | 10.0 | 4.0 | 6.0 | 12.3 | 6.0 | 21 | 6K60M30E50-96740SZN | 6.0 | 3.0 | 3.0 | 96.7 | 4.0 |
| 2 | 6K100M50E60-340120B | 10.0 | 5.0 | 6.0 | 34.0 | 12.0 | 22 | 6K60M40E40-12060B | 6.0 | 4.0 | 4.0 | 12.0 | 6.0 |
| 3 | 6K120M41E50-6050S | 12.0 | 4.1 | 5.0 | 8.5 | 5.0 | 23 | 6K60M40E40-12080B | 6.0 | 4.0 | 4.0 | 12.0 | 8.0 |
| 4 | 6K160M80E80-400150B | 16.0 | 8.0 | 8.0 | 40.0 | 15.0 | 24 | 6K60M40E40-16355B | 6.0 | 4.0 | 4.0 | 16.3 | 5.5 |
| 5 | 6K40M20E20-12530B | 4.0 | 2.0 | 2.0 | 12.5 | 3.0 | 25 | 6K60M40E40-18060B | 6.0 | 4.0 | 4.0 | 18.0 | 6.0 |
| 6 | 6K475M30E30-8060ZN | 4.75 | 3.0 | 3.0 | 8.0 | 6.0 | 26 | 6K70M40E40-41460B | 7.0 | 4.0 | 4.0 | 41.4 | 6.0 |
| 7 | 6K50M00E30-590105ZN | 5.0 | 0.0 | 3.0 | 15.0 | 10.5 | 27 | 6K80M40E40-6470B | 8.0 | 4.0 | 4.0 | 6.4 | 7.0 |
| 8 | 6K50M25E25-8050N | 5.0 | 2.5 | 2.5 | 8.0 | 5.0 | 28 | 6K80M40E50-12070B | 8.0 | 4.0 | 5.0 | 12.0 | 7.0 |
| 9 | 6K50M25E30-5060N | 5.0 | 2.5 | 3.0 | 5.0 | 6.0 | 29 | 6K80M40E50-12080B | 8.0 | 4.0 | 5.0 | 12.0 | 8.0 |
| 10 | 6K50M30E30-11560ZN | 5.0 | 3.0 | 3.0 | 11.5 | 6.0 | 30 | 6K80M40E50-21470B | 8.0 | 4.0 | 5.0 | 21.4 | 7.0 |
| 11 | 6K50M30E30-169550ZN | 5.0 | 3.0 | 3.0 | 16.95 | 5.0 | 31 | 6K80M40E50-31370B | 8.0 | 4.0 | 5.0 | 31.3 | 7.0 |
| 12 | 6K55M30E30-20580B | 5.5 | 3.0 | 3.0 | 20.5 | 8.0 | 32 | 6K80M40E50-59880ZN | 8.0 | 4.0 | 5.0 | 59.8 | 8.0 |
| 13 | 6K55M30E30-22060N | 5.5 | 3.0 | 3.0 | 22.0 | 6.0 | 33 | 6K80M40E50-7550B | 8.0 | 4.0 | 5.0 | 75 | 5.0 |
| 14 | 6K55M30E30-8060N | 5.5 | 3.0 | 3.0 | 8.0 | 6.0 | 34 | 6K80M40E50-8450B | 8.0 | 4.0 | 5.0 | 8.4 | 5.0 |
| 15 | 6K55M30E40-15060BN | 5.5 | 3.0 | 4.0 | 15.0 | 6.0 | 35 | 6K80M50E50-11060B | 8.0 | 50 | 5.0 | 11.0 | 6.0 |
| 16 | 6K60M30E30-33060ZN | 6.0 | 3.0 | 3.0 | 33.0 | 6.0 | 36 | 6K80M50E50-13040T | 8.0 | 50 | 5.0 | 13.0 | 4.0 |
| 17 | 6K60M30E30-38445ZN | 6.0 | 3.0 | 3.0 | 38.4 | 4.5 | 37 | 6K80M50E50-43460B | 8.0 | 50 | 5.0 | 43.4 | 6.0 |
| 18 | 6K60M30E30-41260ZN | 6.0 | 3.0 | 3.0 | 41.2 | 6.0 | 38 | 6K80M50E60-28060B | 8.0 | 50 | 6.0 | 28.0 | 6.0 |
| 19 | 6K60M30E30-8140B | 6.0 | 3.0 | 3.0 | 8.1 | 4.0 | 39 | 6K90M50E50-46090NI | 9.0 | 5.0 | 5.0 | 46.0 | 9.0 |
| 20 | 6K60M30E50-1009100ZN | 6.0 | 3.0 | 5.0 | 100.9 | 10.0 | 40 | ||||||
| Can be customized requirements any specifications (可依客戶的需求訂製任何規格) | |||||||||||||
| 6KT Type | |||||||||||||
| Part No. | 6KT | M1 | E | A | H | Part No. | 6KT | M1 | E | A | H | ||
| 1 | 6K120M50E50-45080B | 12.0 | 5.0 | 5.0 | 47.1 | 8.0 | 10 | 6K60T45M30E30-7750B | 6.0 | 3.0 | 3.0 | 8.5 | 5.0 |
| 2 | 6K50T40M30E30-14567DBT_R2 | 5.0 | 3.0 | 3.0 | 15.5 | 6.7 | 11 | 6K60T45M30E40-8360ZN | 6.0 | 3.0 | 4.0 | 9.0 | 6.0 |
| 3 | 6K50T40M30E30-33767DBT_R2 | 5.0 | 3.0 | 3.0 | 34.7 | 6.7 | 12 | 6K80M30E40-12070ZN | 8.0 | 3.0 | 4.0 | 12.0 | 7.0 |
| 4 | 6K50T40M30E30-45967DBT_R2 | 5.0 | 3.0 | 3.0 | 46.9 | 6.7 | 13 | 6K80M30E50-5450ZN | 8.0 | 3.0 | 5.0 | 5.4 | 5.0 |
| 5 | 6K50T40M30E30-49567DBT_R2 | 5.0 | 3.0 | 3.0 | 50.5 | 6.7 | 14 | 6K80M40E40-10245B | 8.0 | 4.0 | 4.0 | 10.2 | 4.5 |
| 6 | 6K50T40M30E30-6267DBT_R2 | 5.0 | 3.0 | 3.0 | 7.2 | 6.7 | 15 | 6K80M40E40-53470SZ | 8.0 | 4.0 | 4.0 | 53.4 | 7.0 |
| 7 | 6K50T40M30E30-9967DBT_R2 | 5.0 | 3.0 | 3.0 | 10.9 | 6.7 | 16 | 6K80T44M30E40-4860ZN | 8.0 | 3.0 | 4.0 | 5.5 | 6.0 |
| 8 | 6K60M30E40-7264B | 6.0 | 3.0 | 4.0 | 8.6 | 6.4 | 17 | 6K80T56M40E40-15251B | 8.0 | 4.0 | 4.0 | 16.6 | 5.1 |
| 9 | 6K60T41M30E30-41440ZN | 6.0 | 3.0 | 3.0 | 42.8 | 4.0 | 18 | ||||||
| Can be customized requirements any specifications (可依客戶的需求訂製任何規格) | |||||||||||||
| 6KU Type | |||||||||||||
| Part No. | 6KU | M1 | M2 | A | Part No. | 6KU | M1 | M2 | A | ||||
| 1 | 6K100M50M50E00-35000B | 10.0 | 5.0 | 5.0 | 35.0 | 3 | 6K58M30E00-22000B | 5.0 | 3.0 | 3.0 | 22.0 | ||
| 2 | 6K100M60M50E00-24500B | 10.0 | 6.0 | 5.0 | 24.5 | 4 | 6K70M40E00-33000B | 7.0 | 4.0 | 3.0 | 33.0 | ||
| Can be customized requirements any specifications (可依客戶的需求訂製任何規格) | |||||||||||||
| 6KH Type | |||||||||||||
| Part No. | 6KH | M1 | M2 | A | Part No. | 6KH | M | E | A | H | |||
| 1 | 6K55T40M30E30-12040B | 5.5 | 4.0 | 4.0 | 12.0 | 2 | |||||||
| Can be customized requirements any specifications (可依客戶的需求訂製任何規格) | |||||||||||||
The below drawing is examples of applications for Laptop PCB.
