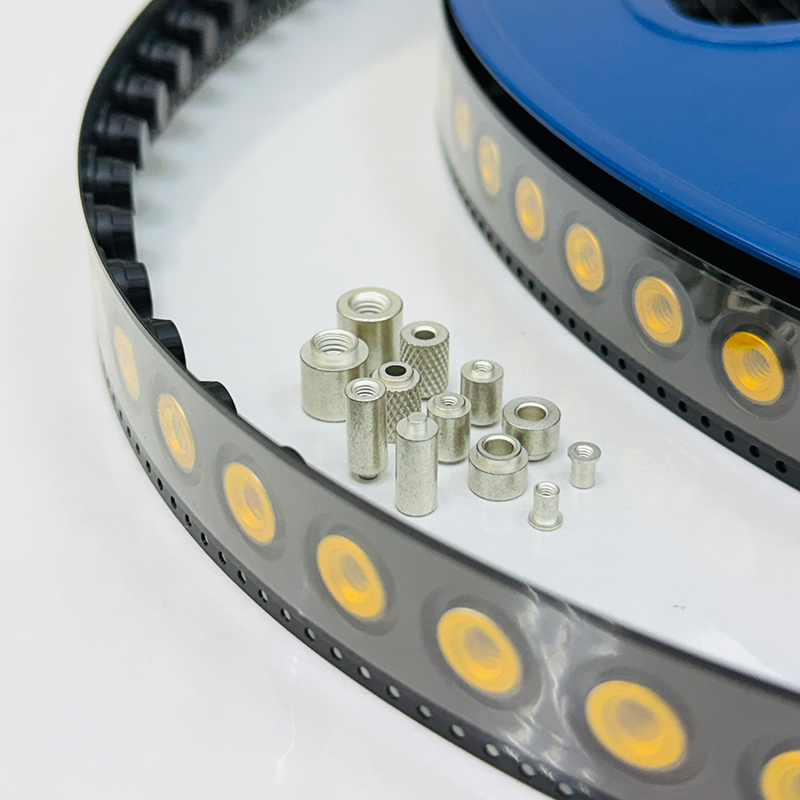

SMT 螺帽、緊固件與螺紋銅柱
U-TEK SMT 螺帽、緊固件與螺紋支撐柱為專為全自動化 PCB 組裝製 程所設計的精密緊固解決方案，可相容於標準 SMT 設備及 IR 紅外線 迴焊（Reflow Soldering）製程。產品可提供穩定可靠的機械固定功 能，同時提升生產效率與組裝可靠度。
為滿足高速自動化 SMT 組裝需求，U-TEK SMT 螺帽頂部貼附耐高溫 PI（Polyimide，聚醯亞胺）薄膜，使標準 SMT 真空吸嘴能夠穩定吸取元件，並精準放置於 PCB 指定位置。完成迴焊後，可將 PI 薄膜移除，在 PCB 上形成潔淨、穩固且可靠的螺紋固定點，供後續零組件鎖附與組裝使用。
U-TEK SMT 緊固件提供多種螺紋尺寸、本體直徑、安裝高度、表面處理及包裝方式，可依不同 PCB 設計與自動化組裝需求進行選擇。U-TEK SMT 緊固解決方案結合自動化組裝效率、機械固定可靠度與設計彈性，適用於對生產效率及可靠性要求較高的先進電子產品與 PCB 組裝應用。
U-TEK SMT 緊固件提供多種螺紋尺寸、本體直徑、安裝高度、表面處理及包裝方式，可依不同 PCB 設計與自動化組裝需求進行選擇。U-TEK SMT 緊固解決方案結合自動化組裝效率、機械固定可靠度與設計彈性，適用於對生產效率及可靠性要求較高的先進電子產品與 PCB 組裝應用。
產品優勢
- 支援 SMT 自動化生產
- EIA 標準捲帶包裝（Tape & Reel）
- 優異的焊錫性
- 高機械強度
- 完整多樣的產品規格
- 客製化設計服務
- 品質穩定、快速交貨
- 符合 RoHS & REACH 環保規範
產品應用
- AI 運算主機板（AI Mother Board）
- AI 伺服器（AI Servers）
- 網路通訊設備（Networking Equip.）
- 工業電腦（IPC）
- 筆記型電腦（NB）
- 車用電子（Automotive Electronics）
- 其他高密度電子組裝應用（High-Density Electronic Assemblies）
產品特性
- 材質： Brass / Steel
- 電鍍製程： Matte Tin over Nickel
- 螺紋尺寸： M1.0 – M7.0 or Customized
- 包裝： EIA Tape & Reel
- 製程： SMT Pick & Place
- 焊接： Reflow Compatible
- 合規性： RoHS & REACH
產品圖片
產品系列
U-TEK SMT 螺帽提供四種基本結構型式，可滿足不同 PCB 緊固方式及機構設計需求。
- T-Type: 採用精巧圓柱型設計，提供通孔螺紋及無螺紋孔兩種選擇，適用於一般 PCB 緊固與組裝需求。
- H-Type: 採用凸緣式（Flanged）設計，提供通孔螺紋及無螺紋孔兩種選擇，適用於需要額外定位或支撐功能的應用。
- K-Type: 採用精巧圓柱型設計，搭配盲孔螺紋（Blind Threaded Hole），可有效控制螺絲旋入深度，避免螺絲過度鎖入。
- U-Type: 採用凸緣式盲孔設計（Flanged Blind-Hole Design），兼具螺絲旋入深度控制、定位及機械支撐功能，適合對組裝定位與結構穩定性要求較高的應用。
| Dimension Specification | T-type (Standard) | T-type (E00) | T-type (TNP) | T-type (E00-TNP) |
|---|---|---|---|---|
| OD : Outside Dimension M : Thread Size E : Through Hole Diameter A : Height Above PCB H : PCB Insertion Height |  |  |  |  |
| Dimension Specification | H-type (Standard) | H-type (TNP) | U-type.1 | U-type.2 |
|---|---|---|---|---|
| OD : Outside Dimension T : Small Outside Dimension M : Thread Size E : Through Hole Diameter B : Maximum Thread Depth A : Height Above PCB H1 : Bottom PCB Insertion Height H2 : Top PCB Insertion Height |  |  |  |  |
| Dimension Specification | K-type (Standard) | K-type (E00) | |
|---|---|---|---|
| OD : Outside Dimension M : Thread Size B : Maximum Thread Depth E : Through Hole Diameter A : Height Above PCB H : PCB Insertion Height |  |  |  |
Technical Performance & Reliability
A. Recommended Tightening Torque
| Thread Size | Pitch | Max. Tightening Torque | Thread Size | Pitch | Max. Tightening Torque |
|---|---|---|---|---|---|
| M1.0 | 0.25 | ≤ 0.3 kgf·cm / 2.94 N·cm | M2.5 | 0.45 | ≤ 3.0 kgf·cm / 29.4 N·cm |
| M1.2 | 0.25 | ≤ 0.6 kgf·cm / 5.88 N·cm | M2.6 | 0.45 | ≤ 3.0 kgf·cm / 29.4 N·cm |
| M1.4 | 0.30 | ≤ 1.0 kgf·cm / 9.81 N·cm | M3.0 | 0.50 | ≤ 5.0 kgf·cm / 49.0 N·cm |
| M1.6 | 0.35 | ≤ 1.5 kgf·cm / 14.7 N·cm | M4.0 | 0.70 | ≤ 8.0 kgf·cm / 78.5 N·cm |
| M1.7 | 0.35 | ≤ 1.5 kgf·cm / 14.7 N·cm | M5.0 | 0.8 | ≤ 15.0 kgf·cm / 147 N·cm |
| M2.0 | 0.40 | ≤ 1.5 kgf·cm / 14.7 N·cm | M6.0 | 1.0 | ≤ 23.0 kgf·cm / 226 N·cm |
B. Reliability Verification
Heat Resistance Test
Solderability Test
Thread Verification
RoHS X-ray testing
3D Optical Profilometers
C. Recommended Lead-Free Reflow Profile
D. PCB Application Examples
U-TEK SMT 緊固件支援 PCB 正面與背面兩種安裝方式，可提供更靈活的機構設計選擇，並提升最終產品組裝的設計彈性。
6K-Type Hexagonal SMT Fasteners
U-TEK 6K-Type 系列採用六角形本體設計，適用於需要更佳機械固定能力，以及組裝過程中便於鎖附操作的 PCB 應用。本系列提供多種螺紋尺寸、安裝高度及結構規格，可依不同產品的機構設計與組裝需求進行選擇，滿足各類 PCB 緊固應用。
6K Type Dimensions & Configurations
| Hexagonal nut Dimension | 6K ( Standard Type ) | 6K ( E00 Type ) | 6K ( E00+NP Type ) |
|---|---|---|---|
| OD/W : Outside Dimension T : N/A M1 : Upper Thread Size M2 : Mounting Thread Size E : Through Hole Diameter B1 : Maximum Thread Depth A : Height Above PCB H1 : Bottom PCB Insertion Height H2 : N/A |  |  |  |
| Hexagonal nut Dimension | 6KH Type | 6KU Type | 6KT Type |
|---|---|---|---|
| OD/W : Outside Dimension T : Small Outside Dimension M1 : Upper Thread Size M2 : Mounting Thread Size E : Through Hole Diameter B1 : Maximum Thread Depth A : Height Above PCB H1 : Bottom PCB Insertion Height H2 : Top PCB Insertion Height |  |  |  |
| Hexagonal nut Dimension | 6KV Type | 6KE Type-1 | 6KE Type-2 |
|---|---|---|---|
| OD/W : Outside Dimension T : Small Outside Dimension M1 : Upper Thread Size M2 : Mounting Thread Size E : Through Hole Diameter B1/B2 : Maximum Thread Depth A : Height Above PCB H1 : Bottom PCB Insertion Height H2 : Top PCB Insertion Height |  |  |  |
6K 型六角緊固件的典型應用
| 6K 型六角螺絲 | 6K 型六角螺母 |
|---|---|
| 在 PCB 上直接提供一個固定的螺紋螺柱，用於安裝模組、支架、屏蔽罩和散熱組件。 | 在 PCB 上直接提供可靠的螺紋安裝點，用於在最終機械組裝過程中使用螺絲。 |
| 典型組件：模組 · 散熱片 · 屏蔽罩 · 支架 | 典型組件：機殼 · 散熱器 · 風扇 · 蓋板 · 支架 |
| OD : Outside Dimension T : Small Outside Dimension M : Thread Size E : Through Hole Diameter B : Maximum Thread Depth A : Height Above PCB H1 : Bottom PCB Insertion Height H2 : Top PCB Insertion Height TP : Brass + Tin Plating + Tape & Reel T : Brass + Tin Plating + Bulk TNPT : Brass + No Thread + Tin Plating + Tape & Reel TNP : Brass + No Thread + Tin Plating + Bulk | * Recommended Copper Land Diameter (Dp) = OD + 1.00 mm (Min.) * Recommended PCB Hole Diameter (Dh) = E + 0.20 mm  |
Part Number & Dimensional Specifications
T-Type - Part Number & Dimensional Specifications ( unit: mm )
| Part Number | OD | M | E | A | H | REEL | Part Number | OD | M | E | A | H | REEL | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | T27M16E22-2108TNPT | 2.7 | 1.6 | 2.2 | 2.1 | 0.8 | 2500 | 23 | T45M20E26-1608TP | 4.5 | 2.0 | 2.6 | 1.6 | 0.8 | 1400 |
| 2 | T30M14E24-1515TP | 3.0 | 1.4 | 2.4 | 1.5 | 1.50 | 2400 | 24 | T45M20E30-32152TP | 4.5 | 2.0 | 3.0 | 3.2 | 1.52 | 800 |
| 3 | T30M16E22-1505TP | 3.0 | 1.6 | 2.2 | 1.5 | 0.8 | 3300 | 25 | T45M20E30-7515N | 4.5 | 2.0 | 3.0 | 7.5 | 1.5 | 550 |
| 4 | T35M16E20-1508TP | 3.5 | 1.6 | 2.0 | 1.5 | 0.8 | 3000 | 26 | T45M20E31-2516TP | 4.5 | 2.0 | 3.1 | 2.5 | 1.6 | 1200 |
| 5 | T35M16E20-4008TP | 3.5 | 1.6 | 2.0 | 4.0 | 0.8 | 1600 | 27 | T45M20E31-3008T | 4.5 | 2.0 | 3.1 | 3.0 | 0.8 | 1200 |
| 6 | T35M16E25-2511TP | 3.5 | 1.6 | 2.5 | 2.5 | 1.1 | 2000 | 28 | T45M20E31-3016TP | 4.5 | 2.0 | 3.1 | 3.0 | 1.6 | 1200 |
| 7 | T36M20E28-3611TNPT | 3.6 | 2.0 | 2.8 | 3.6 | 1.1 | 1600 | 29 | T45M20E31-5016TP | 4.5 | 2.0 | 3.1 | 5.0 | 1.6 | 750 |
| 8 | T37M16E25-07175TP | 3.7 | 1.6 | 2.5 | 0.7 | 1.75 | 2700 | 30 | T45M20E32-6411TP | 4.5 | 2.0 | 3.2 | 6.4 | 1.1 | 300 |
| 9 | T38M20E30-0814TP | 3.8 | 2.0 | 3.0 | 0.8 | 1.4 | 3000 | 31 | T45M22E32-8608TNPT | 4.5 | 2.2 | 3.2 | 8.6 | 0.8 | 500 |
| 10 | T40M20E25-3515TP | 4.0 | 2.0 | 2.5 | 3.5 | 1.5 | 1400 | 32 | T45M25E35-0525TP-B | 4.5 | 2.5 | 3.5 | 0.5 | 2.5 | 1500 |
| 11 | T40M20E27-3009TP | 4.0 | 2.0 | 2.7 | 3.0 | 0.9 | 1500 | 33 | T50M20E30-14506T | 5.0 | 2.0 | 3.0 | 1.45 | 0.6 | 1800 |
| 12 | T40M20E27-4009TP | 4.0 | 2.0 | 2.7 | 4.0 | 0.9 | 1400 | 34 | T50M20E30-14508T | 5.0 | 2.0 | 3.0 | 1.45 | 0.8 | 1800 |
| 13 | T40M20E29-0811TP | 4.0 | 2.0 | 2.9 | 0.8 | 1.1 | 3500 | 35 | T50M20E30-1509T | 5.0 | 2.0 | 3.0 | 1.5 | 0.9 | 1800 |
| 14 | T40M20E29-3511TP-B | 4.0 | 2.0 | 2.9 | 3.5 | 1.1 | 1200 | 36 | T50M20E30-4409T | 5.0 | 2.0 | 3.0 | 4.4 | 0.9 | 850 |
| 15 | T40M20E29-5011TP | 4.0 | 2.0 | 2.9 | 5.0 | 1.1 | 800 | 37 | T50M20E30-6709T | 5.0 | 2.0 | 3.0 | 6.7 | 0.9 | 450 |
| 16 | T40M20E29-5809TP | 4.0 | 2.0 | 2.9 | 5.8 | 0.9 | 750 | 38 | T50M20E35-0315TP | 5.0 | 2.0 | 3.5 | 0.3 | 1.5 | 2000 |
| 17 | T40M20E29-7011TP | 4.0 | 2.0 | 2.9 | 7.0 | 1.1 | 600 | 39 | T50M25E33-10015TP | 5.0 | 2.5 | 3.3 | 10.0 | 1.5 | 300 |
| 18 | T40M20E31-4416TP | 4.0 | 2.0 | 3.1 | 4.4 | 1.6 | 800 | 40 | T50M25E33-5015T | 5.0 | 2.5 | 3.3 | 5.0 | 1.5 | 750 |
| 19 | T40M22E27-3009TNPT | 4.0 | 2.20 | 2.7 | 3.0 | 0.9 | 1500 | 41 | T50M25E33-8015TA | 5.0 | 2.5 | 3.3 | 8.0 | 1.5 | 400 |
| 20 | T40M22E27-4009TNPT | 4.0 | 2.20 | 2.7 | 4.0 | 0.9 | 1400 | 42 | T50M25E33-8015TP | 5.0 | 2.5 | 3.3 | 8.0 | 1.5 | 400 |
| 21 | T435M20E28-7014TP | 4.35 | 2.0 | 2.8 | 7.0 | 1.4 | 550 | 43 | T50M25E35-0328TP | 5.0 | 2.5 | 3.5 | 0.3 | 2.8 | 1600 |
| 22 | T44M24E00-1300TNPT | 4.4 | 2.4 | 00 | 1.3 | 00 | 4600 | 44 | T50M25E36-3011TP | 5.0 | 2.5 | 3.6 | 3.0 | 1.1 | 1200 |
| 45 | T50M25E36-5009TP | 5.0 | 2.5 | 3.6 | 5.0 | 0.9 | 800 | 75 | T55M30E40-1515TP | 5.5 | 3.0 | 4.0 | 1.5 | 1.5 | 1200 |
| 46 | T50M27E335-5020TNPT | 5.0 | 2.7 | 3.35 | 5.0 | 2.0 | 500 | 76 | T55M30E40-24507TP | 5.5 | 3.0 | 4.0 | 2.45 | 0.7 | 1200 |
| 47 | T50M27E36-6015TNPT | 5.0 | 2.7 | 3.6 | 6.0 | 1.5 | 450 | 77 | T55M30E40-5008TP | 5.5 | 3.0 | 4.0 | 5.0 | 0.8 | 800 |
| 48 | T50M30E35-2030TP | 5.0 | 3.0 | 3.5 | 2.0 | 3.0 | 800 | 78 | T55M30E40-6715TP | 5.5 | 3.0 | 4.0 | 6.7 | 1.5 | 600 |
| 49 | T50M30E35-3015TP | 5.0 | 3.0 | 3.5 | 3.0 | 1.5 | 1000 | 79 | T55M30E41-2015TP | 5.5 | 3.0 | 4.1 | 2.0 | 1.5 | 1200 |
| 50 | T50M30E35-4007TP | 5.0 | 3.0 | 3.5 | 4.0 | 0.7 | 1000 | 80 | T55M30E42-3010TA | 5.5 | 3.0 | 4.2 | 3.0 | 1.0 | 1200 |
| 51 | T50M30E35-5015TP | 5.0 | 3.0 | 3.5 | 5.0 | 1.5 | 750 | 81 | T55M30E42-3012TP | 5.5 | 3.0 | 4.2 | 3.0 | 1.2 | 1200 |
| 52 | T50M30E35-7015TP | 5.0 | 3.0 | 3.5 | 7.0 | 1.5 | 600 | 82 | T55M30E42-8016TP | 5.5 | 3.0 | 4.2 | 8.0 | 1.6 | 400 |
| 53 | T50M30E35-8015TP | 5.0 | 3.0 | 3.5 | 8.0 | 1.5 | 400 | 83 | T56M20E41-3015TP | 5.6 | 2.0 | 4.1 | 3.0 | 1.5 | 1200 |
| 54 | T50M30E40-031509TP | 5.0 | 3.0 | 4.0 | 3.15 | 0.9 | 1200 | 84 | T56M30E40-10015TP | 5.6 | 3.0 | 4.0 | 10.0 | 1.5 | 300 |
| 55 | T50M30E40-1509TP | 5.0 | 3.0 | 4.0 | 1.5 | 0.9 | 1800 | 85 | T56M30E40-10015TP-A | 5.6 | 3.0 | 4.0 | 10.0 | 1.5 | 300 |
| 56 | T50M30E40-2018TP | 5.0 | 3.0 | 4.0 | 2.0 | 1.8 | 1200 | 86 | T56M33E40-3415TNPT | 5.6 | 3.3 | 4.0 | 3.4 | 1.5 | 1000 |
| 57 | T50M30E40-3409TP | 5.0 | 3.0 | 4.0 | 3.4 | 0.9 | 1000 | 87 | T60M25E31-1512TP | 6.0 | 2.5 | 3.1 | 1.5 | 1.2 | 1200 |
| 58 | T50M30E40-3409TP-R1 | 5.0 | 3.0 | 4.0 | 3.4 | 0.9 | 1000 | 88 | T60M25E31-1516TP | 6.0 | 2.5 | 3.1 | 1.5 | 1.6 | 1200 |
| 59 | T50M30E40-5009TP | 5.0 | 3.0 | 4.0 | 5.0 | 0.9 | 800 | 89 | T60M25E31-4416TP | 6.0 | 2.5 | 3.1 | 4.4 | 1.6 | 800 |
| 60 | T50M30E40-6609TP | 5.0 | 3.0 | 4.0 | 6.6 | 0.9 | 450 | 90 | T60M25E31-6416TP | 6.0 | 2.5 | 3.1 | 6.4 | 1.6 | 700 |
| 61 | T50M30E40-8009TP | 5.0 | 3.0 | 4.0 | 8.0 | 0.9 | 400 | 91 | T60M25E31-6715TP | 6.0 | 2.5 | 3.1 | 6.7 | 1.5 | 700 |
| 62 | T50M30E41-2516TP | 5.0 | 3.0 | 4.1 | 2.5 | 1.6 | 1200 | 92 | T60M30E41-1516TP | 6.0 | 3.0 | 4.1 | 1.5 | 1.6 | 1500 |
| 63 | T50M30E41-5016TP | 5.0 | 3.0 | 4.1 | 5.0 | 1.6 | 700 | 93 | T60M30E42-5516TP | 6.0 | 3.0 | 4.2 | 5.5 | 1.6 | 700 |
| 64 | T50M30E42-4508TP | 5.0 | 3.0 | 4.2 | 4.5 | 0.8 | 900 | 94 | T60M30E42-6014TP | 6.0 | 3.0 | 4.2 | 6.0 | 1.4 | 700 |
| 65 | T51M25E35-1514TP | 5.1 | 2.5 | 3.5 | 1.5 | 1.4 | 1600 | 95 | T60M33E42-3014TNPT | 6.0 | 3.3 | 4.2 | 3.0 | 1.4 | 1200 |
| 66 | T52M26E42-11015TNPT | 5.2 | 2.6 | 4.2 | 11.0 | 1.5 | 300 | 96 | T70M33E55-0521TNPT | 7.0 | 3.3 | 5.5 | 0.5 | 2.1 | 1800 |
| 67 | T52M31E38-4011TNPT | 5.2 | 3.1 | 3.8 | 4.0 | 1.1 | 800 | 97 | T70M36E56-1039TNPT | 7.0 | 3.6 | 5.6 | 1.0 | 3.9 | 1000 |
| 68 | T556M30E41-32153TP | 5.56 | 3.0 | 4.1 | 3.2 | 1.53 | 1200 | 98 | T70M40E55-12014TP | 7.0 | 4.0 | 5.5 | 12.0 | 1.4 | 200 |
| 69 | T55M25E34-5011TP | 5.5 | 2.5 | 3.4 | 5.0 | 1.1 | 850 | 99 | T70M40E55-5016TNPT | 7.0 | 4.0 | 5.5 | 5.0 | 1.6 | 700 |
| 70 | T55M25E40-2015TP | 5.5 | 2.5 | 4.0 | 2.0 | 1.5 | 1200 | 100 | T70M40E60-2018TP | 7.0 | 4.0 | 6.0 | 2.0 | 1.8 | 1300 |
| 71 | T55M25E40-2020TP | 5.5 | 2.5 | 4.0 | 2.0 | 2.0 | 1200 | 101 | T70M40E60-3018TP | 7.0 | 4.0 | 6.0 | 3.0 | 1.8 | 750 |
| 72 | T55M25E40-5015TP | 5.5 | 2.5 | 4.0 | 5.0 | 1.5 | 750 | 102 | T70M43E55-0521TNPT | 7.0 | 4.3 | 5.5 | 0.5 | 2.1 | 1800 |
| 73 | T55M27E32-5020TNPT | 5.5 | 2.7 | 3.2 | 5.0 | 2.0 | 750 | 103 | T72M35E54-4016TP | 7.2 | 3.5 | 5.4 | 4.0 | 1.6 | 800 |
| 74 | T55M30E40-11015TP | 5.5 | 3.0 | 4.0 | 11.0 | 1.5 | 300 | 104 | T72M35E54-4212TNPT | 7.2 | 3.5 | 5.4 | 4.2 | 1.2 | 1000 |
| 105 | T76M44E64-93095TNPT | 7.6 | 4.4 | 6.4 | 9.3 | 0.95 | 300 | 115 | T874M40E62-3015TP | 8.74 | 4.0 | 6.2 | 3.0 | 1.5 | 800 |
| 106 | T76M44E64-93095TNPU | 7.6 | 4.4 | 6.4 | 9.3 | 0.95 | 300 | 116 | T88M40E62-4815TP | 8.8 | 4.0 | 6.2 | 4.8 | 1.5 | 500 |
| 107 | T80M40E50-18015TP | 8.0 | 4.0 | 5.0 | 18.0 | 1.5 | 100 | 117 | T90M40E60-4014TP | 9.0 | 4.0 | 6.0 | 4.0 | 1.4 | 700 |
| 108 | T80M40E50-20015TP | 8.0 | 4.0 | 5.0 | 20.0 | 1.5 | 100 | 118 | T90M40E62-8016TP | 9.0 | 4.0 | 6.2 | 8.0 | 1.6 | 300 |
| 109 | T80M40E55-1612TP | 8.0 | 4.0 | 5.5 | 1.6 | 1.2 | 1700 | 119 | T90M50E62-8016TP | 9.0 | 5.0 | 6.2 | 8.0 | 1.6 | 300 |
| 110 | T80M44E64-77095TNPT | 8.0 | 4.4 | 6.4 | 7.7 | 0.95 | 450 | 120 | T90M50E70-3030TP | 9.0 | 5.0 | 7.0 | 3.0 | 3.0 | 600 |
| 111 | T80M44E64-77095TNPU | 8.0 | 4.4 | 6.4 | 7.7 | 0.95 | 450 | 121 | T100M40E70-3030TP | 10.0 | 4.0 | 7.0 | 3.0 | 3.0 | 650 |
| 112 | T80M50E70-2018TP | 8.0 | 5.0 | 7.0 | 2.0 | 1.8 | 1000 | 122 | T120M52E77-4009TNPT | 12.0 | 5.2 | 7.7 | 4.0 | 0.9 | 600 |
| 113 | T80M50E70-7518TP | 8.0 | 5.0 | 7.0 | 7.5 | 1.8 | 400 | 123 | T120M52E77-4009TNPU | 12.0 | 5.2 | 7.7 | 4.0 | 0.9 | 600 |
| 114 | T874M40E622-60153TP | 8.74 | 4.0 | 6.22 | 6.0 | 1.53 | 500 | 124 | T120M52E77-5209TNPU | 12.0 | 5.2 | 7.7 | 5.2 | 0.9 | 500 |
| Tape-and-reel packaging is available for applicable part numbers. Packaging quantity is indicated in the table. For additional sizes, configurations, packaging options, or customized requirements, please contact U-TEK for further assistance. Specifications last updated: 2026-10-02 | |||||||||||||||
| OD : Outside Dimension T : Small Outside Dimension M : Thread Size E : Through Hole Diameter B : Maximum Thread Depth A : Height Above PCB H1 : Bottom PCB Insertion Height H2 : Top PCB Insertion Height TP : Brass + Tin Plating + Tape & Reel T : Brass + Tin Plating + Bulk TNPT : Brass + No Thread + Tin Plating + Tape & Reel TNP : Brass + No Thread + Tin Plating + Bulk | * Recommended Copper Land Diameter (Dp) = OD + 1.00 mm (Min.) * Recommended PCB Hole Diameter (Dh) = E + 0.20 mm  |
H-Type - Part Number & Dimensional Specifications ( unit: mm )
| Part Number | OD | T | M | E | A | H1 | H2 | REEL | |
|---|---|---|---|---|---|---|---|---|---|
| 1 | H35T24M16E23-1508TP | 3.5 | 2.4 | 1.6 | 2.3 | 1.5 | 0.8 | 1.0 | 2000 |
| 2 | H35T24M16E23-4008TP | 3.5 | 2.4 | 1.6 | 2.3 | 4.8 | 0.8 | 1.0 | 1300 |
| 3 | H35T25M16E25-1710TP | 3.5 | 2.5 | 1.6 | 2.5 | 1.7 | 1.0 | 1.0 | 1700 |
| 4 | H35T25M16E25-4010TP | 3.5 | 2.5 | 1.6 | 2.5 | 4.0 | 1.0 | 1.0 | 1300 |
| 5 | H35T27M20E27-3908TP | 3.5 | 2.7 | 2.0 | 2.7 | 3.9 | 0.8 | 1.5 | 1200 |
| 6 | H38T26M20E26-4008TNPT | 3.8 | 2.6 | 2.0 | 2.6 | 4.0 | 0.8 | 0.8 | 1400 |
| 7 | H45T30M20E25-14507TP | 4.5 | 3.0 | 2.0 | 2.5 | 1.45 | 0.7 | 0.65 | 1500 |
| 8 | H45T32M20E25-1606TP | 4.5 | 3.2 | 2.0 | 2.5 | 1.6 | 0.6 | 0.65 | 1500 |
| 9 | H45T32M20E25-14406TP | 4.5 | 3.2 | 2.0 | 2.5 | 1.44 | 0.6 | 0.65 | 1500 |
| 10 | H45T32M20E25-17406TP | 4.5 | 3.2 | 2.0 | 2.5 | 1.74 | 0.6 | 0.65 | 1500 |
| 11 | H50T30M20E30-6709TP | 5.0 | 3.0 | 2.0 | 3.0 | 6.7 | 0.9 | 0.65 | 650 |
| 12 | H50T34M20E34-1511TP | 5.0 | 3.4 | 2.0 | 3.4 | 1.5 | 1.1 | 0.7 | 1500 |
| 13 | H50T42M30E42-5015TP | 5.0 | 4.2 | 3.0 | 4.2 | 5.0 | 1.5 | 1.5 | 650 |
| 14 | H55T30M20E40-24507TP | 5.5 | 3.0 | 2.0 | 4.0 | 2.45 | 0.7 | 0.65 | 1200 |
| 15 | H55T33M20E40-6715TP | 5.5 | 3.3 | 2.0 | 4.0 | 6.7 | 1.5 | 0.6 | 600 |
| 16 | H55T40M30E40-376211TP | 5.5 | 4.0 | 3.0 | 4.0 | 1.65 | 2.11 | 2.11 | 750 |
| 17 | H55T40M30E40-5015TP | 5.5 | 4.0 | 3.0 | 4.0 | 5.0 | 1.5 | 1.5 | 600 |
| 18 | H60T45M22E30-10014TNPT | 6.0 | 4.5 | 2.2 | 3.0 | 10.0 | 1.4 | 1.8 | 300 |
| Tape-and-reel packaging is available for applicable part numbers. Packaging quantity is indicated in the table. For additional sizes, configurations, packaging options, or customized requirements, please contact U-TEK for further assistance. Specifications last updated: 2026-10-02 | |||||||||
| OD : Outside Dimension T : Small Outside Dimension M : Thread Size E : Through Hole Diameter B : Maximum Thread Depth A : Height Above PCB H1 : Bottom PCB Insertion Height H2 : Top PCB Insertion Height TP : Brass + Tin Plating + Tape & Reel T : Brass + Tin Plating + Bulk TNPT : Brass + No Thread + Tin Plating + Tape & Reel TNP : Brass + No Thread + Tin Plating + Bulk | * Recommended Copper Land Diameter (Dp) = OD + 1.00 mm (Min.) * Recommended PCB Hole Diameter (Dh) = E + 0.20 mm  |
U-Type - Part Number & Dimensional Specifications ( unit: mm )
| Part Number | OD | T | M | E | B | A | H1 | H2 | REEL | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | U34T30M20E08-3007TP | 3.4 | 3.0 | 2.0 | 0.8 | 2.0 | 3.0 | 0.7 | N/A | 2000 |
| 2 | U40T25M20E10-5008TP | 4.0 | 2.5 | 2.0 | 1.0 | 5.0 | 5.0 | 0.8 | 0.8 | 700 |
| 3 | U50T32M20E10-31515TP | 5.0 | 3.2 | 2.0 | 1.0 | 2.5 | 3.15 | 1.5 | 0.7 | 1000 |
| 4 | U55T36M20E315-7935TP | 5.5 | 3.6 | 2.0 | 3.15 | 6.0 | 3.0+H2 | 3.5 | 4.9 | 400 |
| 5 | U55T45M30E075-4010TP | 5.5 | 4.5 | 3.0 | 0.75 | 2.5 | 4.0 | 1.0 | N/A | 1000 |
| 6 | U60T45M30E30-10014TP | 6.0 | 4.5 | 3.0 | 3.0 | 7.0 | 10.0 | 1.4 | 1.4 | 300 |
| OD : Outside Dimension T : Small Outside Dimension M : Thread Size E : Through Hole Diameter B : Maximum Thread Depth A : Height Above PCB H1 : Bottom PCB Insertion Height H2 : Top PCB Insertion Height TP : Brass + Tin Plating + Tape & Reel T : Brass + Tin Plating + Bulk TNPT : Brass + No Thread + Tin Plating + Tape & Reel TNP : Brass + No Thread + Tin Plating + Bulk | * Recommended Copper Land Diameter (Dp) = OD + 1.00 mm (Min.) * Recommended PCB Hole Diameter (Dh) = E + 0.20 mm  |
K-Type - Part Number & Dimensional Specifications ( unit: mm )
| Part Number | OD | M | E | A | H | B | REEL | Part Number | OD | M | E | A | H | B | REEL | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | K35M10E20-1510T | 3.5 | 1.0 | 2.0 | 1.5 | 1.0 | 1.7 | 2500 | 21 | K50M30E00-8000TP | 5.0 | 3.0 | 00 | 8.0 | 00 | 6.0 | 650 |
| 2 | K35M14E18-2008TP | 3.5 | 1.4 | 1.8 | 2.0 | 0.8 | 1.7 | 2500 | 22 | K50M30E10-11012TP | 5.0 | 3.0 | 1.0 | 11.0 | 1.2 | 5.0 | 300 |
| 3 | K33M16E00-5000TP | 3.3 | 1.6 | 00 | 5.0 | 00 | 2.0 | 1500 | 23 | K50M30E10-6615TP | 5.0 | 3.0 | 1.0 | 6.6 | 1.5 | 4.2 | 450 |
| 4 | K35M17E22-2008TP | 3.5 | 1.7 | 2.2 | 2.0 | 0.8 | 1.7 | 2500 | 24 | K50M30E15-5011TP | 5.0 | 3.0 | 1.5 | 5.0 | 1.1 | 3.2 | 880 |
| 5 | K30M20E10-5011TP | 3.0 | 2.0 | 1.0 | 5.0 | 3.7 | 1.1 | 1200 | 25 | K50M30E15-8511TP | 5.0 | 3.0 | 1.5 | 8.5 | 1.1 | 6.0 | 400 |
| 6 | K35M20E27-6009TP | 3.5 | 2.0 | 2.7 | 6.0 | 0.9 | 5.0 | 750 | 26 | K50M30E23-6015TP | 5.0 | 3.0 | 2.3 | 6.0 | 1.5 | 4.0 | 650 |
| 7 | K40M20E10-5008TP | 4.0 | 2.0 | 1.0 | 5.0 | 0.8 | 3.0 | 900 | 27 | K50M30E23-11015TP | 5.0 | 3.0 | 2.3 | 11.0 | 1.5 | 5.0 | 300 |
| 8 | K40M20E10-5011TP | 4.0 | 2.0 | 1.0 | 5.0 | 1.1 | 3.4 | 900 | 28 | K50M30E23-15015TP | 5.0 | 3.0 | 2.3 | 15.0 | 1.5 | 6.0 | 150 |
| 9 | K40M20E10-5011T4 | 4.0 | 2.0 | 1.0 | 5.0 | 1.1 | 4.0 | 900 | 29 | K50M30E26-4015TP | 5.0 | 3.0 | 2.6 | 4.0 | 1.5 | 2.5 | 900 |
| 10 | K40M20E10-8011TP | 4.0 | 2.0 | 1.0 | 8.0 | 1.1 | 6.0 | 500 | 30 | K50M30E26-4035TP | 5.0 | 3.0 | 2.6 | 4.0 | 3.5 | 2.5 | 500 |
| 11 | K40M20E35-3010TP | 4.0 | 2.0 | 3.5 | 3.0 | 1.0 | 2.0 | 1500 | 31 | K50M30E30-4215TP | 5.0 | 3.0 | 3.0 | 4.2 | 1.5 | 3.2 | 850 |
| 12 | K40M20E35-4010TP | 4.0 | 2.0 | 3.5 | 4.0 | 1.0 | 2.5 | 1500 | 32 | K50M30E32-5015TP | 5.0 | 3.0 | 3.2 | 5.0 | 1.5 | 3.0 | 750 |
| 13 | K40M25E14-5008TP | 4.0 | 2.5 | 1.4 | 5.0 | 0.8 | 4.0 | 900 | 33 | K50M30E32-6415TP | 5.0 | 3.0 | 3.2 | 6.4 | 1.5 | 3.8 | 450 |
| 14 | K45M25E26-4015TP | 4.5 | 2.5 | 2.6 | 4.0 | 1.5 | 2.6 | 900 | 34 | K50M30E35-6626TP | 5.0 | 3.0 | 3.5 | 6.6 | 2.6 | 5.5 | 500 |
| 15 | K50M20E10-5011TP | 5.0 | 2.0 | 1.0 | 5.0 | 1.1 | 3.4 | 880 | 35 | K55M25E10-5008TP | 5.5 | 2.5 | 1.0 | 5.0 | 0.8 | 3.9 | 850 |
| 16 | K50M20E10-6615TP | 5.0 | 2.0 | 1.0 | 6.6 | 1.5 | 4.2 | 450 | 36 | K55M25E315-4535TP | 5.5 | 2.5 | 3.15 | 4.5 | 3.5 | 6.5 | 600 |
| 17 | K50M20E23-6610TP | 5.0 | 2.0 | 2.3 | 6.6 | 1.0 | 5.2 | 450 | 37 | K55M25E315-10040TP | 5.5 | 2.5 | 3.15 | 10.0 | 4.0 | 7.5 | 270 |
| 18 | K50M20E30-9609TP | 5.0 | 2.0 | 3.0 | 9.6 | 0.9 | 3.0 | 350 | 38 | K55M30E315-5235TP | 5.5 | 3.0 | 3.15 | 5.2 | 3.5 | 4.5 | 600 |
| 19 | K50M26E38-3008TP | 5.0 | 2.6 | 3.8 | 3.0 | 0.8 | 2.6 | 1200 | 39 | K55M30E33-7014TP | 5.5 | 3.0 | 3.3 | 7.0 | 1.4 | 5.0 | 450 |
| 20 | K50M30E00-7000TP | 5.0 | 3.0 | 00 | 7.0 | 00 | 4.0 | 650 | 40 | K55M30E42-3016TP | 5.5 | 3.0 | 4.2 | 3.0 | 1.6 | 2.5 | 1200 |
| OD : Outside Dimension T : Small Outside Dimension M : Thread Size E : Through Hole Diameter B : Maximum Thread Depth A : Height Above PCB H1 : Bottom PCB Insertion Height H2 : Top PCB Insertion Height TP : Brass + Tin Plating + Tape & Reel T : Brass + Tin Plating + Bulk TNPT : Brass + No Thread + Tin Plating + Tape & Reel TNP : Brass + No Thread + Tin Plating + Bulk | * Recommended Copper Land Diameter (Dp) = OD + 1.00 mm (Min.) * Recommended PCB Hole Diameter (Dh) = E + 0.20 mm  |
K-Type - Part Number & Dimensional Specifications ( unit: mm )
| Part Number | OD | M | E | A | H | B | REEL | |
|---|---|---|---|---|---|---|---|---|
| 41 | K55M30E42-8016TP | 5.5 | 3.0 | 4.2 | 8.0 | 1.6 | 5.0 | 400 |
| 42 | K55M30E42-11016TP | 5.5 | 3.0 | 4.2 | 11.0 | 1.6 | 8.0 | 300 |
| 43 | K56M20E40-10015TP | 5.6 | 2.0 | 4.0 | 10.0 | 1.5 | 6.0 | 300 |
| 44 | K60M30E30-65513TP | 6.0 | 3.0 | 3.0 | 6.55 | 1.3 | 6.0 | 550 |
| 45 | K60M30E30-10513TP | 6.0 | 3.0 | 3.0 | 10.5 | 1.3 | 6.0 | 300 |
| 46 | K70M30E00-7000TP | 7.0 | 3.0 | 00 | 7.0 | 00 | 4.0 | 700 |
| 47 | K88M40E62-4425TP | 8.8 | 4.0 | 6.2 | 4.4 | 2.5 | 5.0 | 550 |
| 48 | K90M40E62-11016TP | 9.0 | 4.0 | 6.2 | 11.0 | 1.6 | 9.0 | 250 |
| 49 | K90M50E62-4516TP | 9.0 | 5.0 | 6.2 | 4.5 | 1.6 | 3.5 | 600 |
| 50 | K90M50E62-10016TP | 9.0 | 5.0 | 6.2 | 10.0 | 1.6 | 9.0 | 250 |
| 51 | K90M50E62-11016TP | 9.0 | 5.0 | 6.2 | 11.0 | 1.6 | 9.0 | 250 |
| 52 | K90M50E00-12000TP | 9.0 | 5.0 | 00 | 12.0 | 00 | 5.5 | 250 |
| 53 | K90M50E62-13016TP | 9.0 | 5.0 | 6.2 | 13.0 | 1.6 | 9.0 | 200 |
| 54 | K90M50E62-17516TP | 9.0 | 5.0 | 6.2 | 17.5 | 1.6 | 9.0 | 100 |
| Tape-and-reel packaging is available for applicable part numbers. Packaging quantity is indicated in the table. For additional sizes, configurations, packaging options, or customized requirements, please contact U-TEK for further assistance. Specifications last updated: 2026-10-02 |
||||||||
