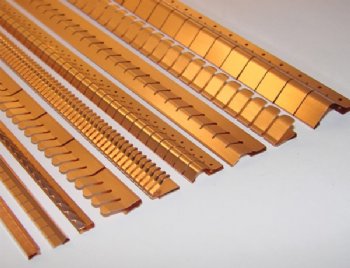

導電鈹銅接地彈片(導電彈片)
一個EMC屏蔽襯墊是很簡單的兩個對立的金屬表面，這使得它們出現作為一個連續的射頻吸收電器上的連接器。幾乎每一個領域的電子產品可能需要某種形式的電子屏蔽。主要用途通常包括：
- RF墊片
- 接地
- 靜電放電
- EMI/ RFI屏蔽的輻射和抗干擾
- 高強度的銅合金，特別是鈹銅，可以滿足更嚴厲，更苛刻的規範。
產品優點
- 卓越的衰減效能
- 高的電氣和射頻傳導效果
- 優異的壓縮回覆力及抗應力
- 優異的耐腐蝕性能
- 優異的耐久性壽命
- 接受各種金屬鍍層的兼容性
- 在高溫下仍有優異的性能
- 耐高濕度和抗紫外線
- 低電流導通;即ESD
- 規格化產品成本效益高
產品特性
- 材質：鈹銅（Be-Cu C17200 1 / 2H）
- 可以指定：磷青銅（Ph-Cu）/不銹鋼（SUS）/鈦銅（Ti-Cu）
- 硬度：HM190或HV300-340或HV360-410
- 表面處理：電鍍金屬塗層，如：表面亮光處理/亮金/亮錫/啞光錫
- 啞光鎳/亮鎳/亮化學鎳
- 體積電阻率：<0.05Ω/ sq.in，壓縮率為30％
- 壓縮測試：30％壓縮1,000次無變化
- 環境試驗：可通過-40℃~80℃ 72小時循環試驗三次
- 屏蔽效能：>85dB 從30MHz到3GHz（平均值）
鈹銅接地彈片可確保緊密的RFI / EMI防護在高速微處理器的電子產品外殼。
典型的鈹銅接地彈片安裝在電子機櫃門上的頂視圖。
料號結構
| 99 | – | 700 | – | 02 | – | 64 | |
| 〔1〕 | 〔2〕 | 〔3〕 | 〔4〕 | ||||
| 〔1〕 | Material Thickness :
99 =≧0.08t (Beryllium copper ) 98=≦0.06t ( Ultra Soft Beryllium copper )
88 = Phosphor Bronze 77 = Stainless Steel (#303/304) 66 = Titanium copper |
||||||
| 〔2〕 | Type Number Series :
500 = fold Over Series 871 = Clip On Series 934 = No Snag Series...
|
||||||
| 〔3〕 |
Surface Treatment :
02 = Bright Finish 05 = Bright Gold 17 = Bright Tin 27 = Matte Tin
19 = Matte Nickel 29 = Bright Nickel 39 = Bright Electroless Nickel |
||||||
| 〔4〕 | Length(Finger Quantity) : 64 = 64 Fingers 127 = 127 Fingers | ||||||
上百種以上的型號規格可供選擇，可節省開發設計的時間。
規格化的產品設計，成本效益高。
安全的庫存及模具，生產效率高。
價格便宜，出貨快速。
規格化的產品設計，成本效益高。
安全的庫存及模具，生產效率高。
價格便宜，出貨快速。
在高濕度和不同金屬存在時的環境，這是應考慮的電化學電位之間的屏蔽墊片和金屬接觸。為了防止電偶作用和腐蝕作用，我們提供了一個完整的電子級鍍層選擇，如電鍍鎳、電鍍錫、電鍍金、表面抗氧化處理等....
Part Number Specifications 【 Omega Shielding Products 】
Unit : mm
| No Snag Variable Slot Mount Series | Part Series | A | B | C | D | E | L ( Finger ) | T |
 |
98-0063-19 | 8.13 | 2.79 | 4.75 | 0.46 | 4.29 | 298.8 ( 63 ) | 0.06 |
| UTF-022-19 | 9.40 | 3.50 | 5.20 | 0.70 | 4.50 | 326.9 ( 63 ) | 0.08 |
| No Snag Variable Slot Mount Series | Part Series | A | B | C | D | E | L ( Finger ) | T |
 |
98-93401-02 | 8.10 | 2.80 | 4.75 | 0.46 | 4.29 | 456 ( 96 ) | 0.06 |
| 98-93403-02 | 8.10 | 2.80 | 4.75 | 0.46 | 4.29 | 456 ( 96 ) | 0.06 | |
| 98-93405-02 | 8.10 | 2.80 | 4.75 | 0.46 | 4.29 | 456 ( 96 ) | 0.06 |
| No Snag Sub Series | Part Series | A | B | C | D | E | F | L ( Finger ) | T |
 |
99-930-02 | 7.9 | 3.0 | 4.76 | 0.51 | 4.25 | 4.3 | 457 ( 96 ) | 0.08 |
| 99-932-02 | 8.4 | 2.5 | 4.76 | 0.51 | 4.25 | 4.3 | 457 ( 96 ) | 0.08 | |
| 99-940-02 | 7.9 | 3.0 | 6.35 | 0.51 | 5.84 | 4.3 | 457 ( 96 ) | 0.08 | |
| 99-960-02 | 15.5 | 6.4 | 9.53 | 0.51 | 9.02 | 6.4 | 457 ( 96 ) | 0.08 |
| No Snag Sub Series | Part Series | A | B | C | D | E | F | L ( Finger ) | T |
 |
99-993-02 | 15.2 | 3.0 | 3.18 | 0.64 | 2.54 | 6.9 | 406 ( --- ) | 0.08 |
| 99-994-02 | 14 | 3.0 | 3.18 | 0.64 | 2.54 | 6.9 | 406 ( --- ) | 0.08 |
| No Snag Slot Mount Series | Part Series | A | B | C | D | E | F | L ( Finger ) | T |
 |
99-903-02 | 7.9 | 3.0 | 4.763 | 0.51 | 4.255 | 2.3 | 457 ( 96 ) | 0.08 |
| 99-904-02 | 7.9 | 3.0 | 6.35 | 0.51 | 5.84 | 2.3 | 457 ( 72 ) | 0.08 | |
| 99-906-02 | 15.7 | 6.4 | 9.53 | 0.51 | 9.02 | 3.6 | 457 ( 48 ) | 0.08 | |
| 98-931-02 | 8.1 | 2.8 | 4.75 | 0.47 | 4.29 | 2.16 | 456 ( 96 ) | 0.06 | |
| 99-933-02 | 8.1 | 2.8 | 4.75 | 0.53 | 4.22 | 2.00 | 456 ( 96 ) | 0.06 |
| Fold Over Sub Series | Part Series | A | B | C | D | E | F | L ( Finger ) | T |
 |
99-740-02 | 7.1 | 2.8 | 4.78 | 0.46 | 4.32 | 5.7 | 406 ( 85 ) | 0.08 |
| 99-720-02 | 9.7 | 3.6 | 6.35 | 0.56 | 5.79 | 7.8 | 406 ( 64 ) | 0.08 | |
| 99-700-02 | 15.2 | 5.6 | 9.53 | 0.81 | 8.71 | 11.9 | 610 ( 64 ) | 0.10 | |
| 99-738-02 | 19.3 | 6.6 | 9.53 | 1.02 | 8.51 | 12.7 | 610 ( 64 ) | 0.10 |
| Enclosed Fold Over Series | Part Series | A | B | C | D | E | F | L ( Finger ) | T |
 |
99-761-02 | 7.1 | 2.3 | 4.76 | 0.46 | 4.3 | 5.3 | 410 ( 86 ) | 0.08 |
| 99-741-02 | 9.7 | 3.0 | 4.78 | 0.46 | 4.32 | 6.1 | 406 ( 85 ) | 0.08 | |
| 99-721-02 | 13 | 3.8 | 6.35 | 0.56 | 5.79 | 9.4 | 406 ( 64 ) | 0.08 | |
| 99-701-02 | 19.3 | 5.8 | 9.53 | 0.81 | 8.71 | 13.2 | 610 ( 64 ) | 0.10 |
| Right Angle Sub Series | Part Series | A | B | C | D | E | F | L ( Finger ) | T |
 |
99-745-02 | 7.1 | 2.8 | 4.78 | 0.46 | 4.32 | 6.1 | 406 ( 85 ) | 0.08 |
| 99-725-02 | 9.7 | 3.6 | 6.35 | 0.56 | 5.79 | 8.1 | 406 ( 64 ) | 0.08 | |
| 99-705-02 | 15.2 | 5.3 | 9.53 | 0.87 | 8.71 | 12.7 | 610 ( 64 ) | 0.10 | |
| 99-300-02 | 21.3 | 6.4 | 9.53 | 1.02 | 8.51 | 12.2 | 305 ( 32 ) | 0.10 |
| Twist Right Angle Series | Part Series | A | B | C | D | E | F | L ( Finger ) | T |
 |
99-251-02 | 2 | 0.8 | 2.44 | 0.38 | 2.06 | 3.6 | 610 ( 250 ) | 0.08 |
| 99-211-02 | 3.3 | 1.8 | 4.19 | 0.38 | 3.81 | 4.8 | 610 ( 146 ) | 0.08 | |
| 99-201-02 | 2.3 | 1.8 | 4.19 | 0.38 | 3.81 | 4.8 | 610 ( 146 ) | 0.08 |
| Twist Sub Series | Part Series | A | B | C | D | E | F | L ( Finger ) | T |
 |
99-250-02 | 5.8 | 0.8 | 2.44 | 0.38 | 2.06 | 3.6 | 610 ( 250 ) | 0.08 |
| 99-200-02 | 7.6 | 1.8 | 4.19 | 0.38 | 3.81 | 4.8 | 610 ( 146 ) | 0.08 | |
| 99-210-02 | 8.6 | 1.8 | 4.19 | 0.38 | 3.81 | 4.8 | 610 ( 146 ) | 0.08 |
| Bi Directional Clip On Series | Part Series | A | B | C | D | E | F | L ( Finger ) | T |
 |
99-440-02 | 10.2 | 2.3 | 12.7 | 1.02 | 5.33 | 3.3 | 406 ( 64 ) | 0.08 |
| 99-441-02 | 10.9 | 3.0 | 12.7 | 1.02 | 5.33 | 3.3 | 406 ( 64 ) | 0.08 |
| Clip On Sub Series | Part Series | A | B | C | D | E | F | L ( Finger ) | T |
  |
☆99-811-02 | 7.6 | 2.5 | 4.78 | 1.19 | 3.58 | 5.3 | 406 ( 85 ) | 0.10 |
| ☆99-821-02 | 10.7 | 2.0 | 4.78 | 1.19 | 3.58 | 7.4 | 406 ( 85 ) | 0.10 | |
| ★99-823-02 | 11.4 | 2.0 | 4.76 | 1.02 | 3.75 | 6.6 | 457 ( 96 ) | 0.10 | |
| ☆99-826-02 | 10.7 | 3.6 | 4.78 | 1.19 | 3.58 | 6.9 | 406 ( 85 ) | 0.10 | |
| ★99-828-02 | 10.7 | 3.6 | 4.78 | 1.02 | 3.75 | 6.6 | 457 ( 96 ) | 0.10 | |
| ☆99-831-02 | 11.4 | 2.5 | 4.77 | 1.19 | 3.58 | 6.9 | 406 ( 85 ) | 0.10 | |
| ★99-833-02 | 11.4 | 2.5 | 4.76 | 1.02 | 3.747 | 6.6 | 457 ( 96 ) | 0.10 | |
| ☆99-861-02 | 15.2 | 5.3 | 4.78 | 1.19 | 3.58 | 7.4 | 406 ( 85 ) | 0.10 | |
| ☆99-866-02 | 13.7 | 7.1 | 4.78 | 1.19 | 3.58 | 7.4 | 406 ( 85 ) | 0.10 | |
| ★99-871-02 | 7.6 | 2.5 | 4.77 | 1.19 | 3.58 | 5.3 | 406 ( 85 ) | 0.10 | |
| ☆99-872-02 | 7.6 | 2.8 | 4.77 | 1.19 | 3.58 | 5.3 | 406 ( 85 ) | 0.10 | |
| ☆99-874-02 | 7.6 | 2.5 | 4.77 | 1.19 | 3.58 | 5.3 | 406 ( 85 ) | 0.10 |
| Reverse Clip On Series | Part Series | A | B | C | D | E | F | L ( Finger ) | T |
 |
99-805-02 | 9.7 | 5.1 | 12.7 | 1.02 | 5.33 | 7.6 | 406 ( 85 ) | 0.12 |
| 99-806-02 | 9.7 | 7.9 | 12.7 | 1.02 | 5.33 | 7.6 | 406 ( 85 ) | 0.12 | |
| 99-807-02 | 9.7 | 7.1 | 12.7 | 1.02 | 5.33 | 7.6 | 406 ( 85 ) | 0.12 |
| Twist Clip On Series | Part Series | A | B | C | D | E | F | L ( Finger ) | T |
 |
99-204-02 | 4.8 | 1.8 | 4.19 | 0.38 | 3.81 | 4.1 | 406 ( 97 ) | 0.08 |
| 99-214-02 | 6.4 | 1.8 | 4.19 | 0.38 | 3.81 | 6.4 | 406 ( 97 ) | 0.08 |
| Mini Clip On Series | Part Series | A | B | C | D | E | F | L ( Finger ) | T |
 |
99-801-02 | 4.8 | 1.3 | 4.19 | 0.38 | 3.81 | 2.3 | 306 ( 73 ) | 0.08 |
| 99-803-02 | 4.6 | 1.3 | 4.19 | 0.38 | 3.81 | 2.8 | 306 ( 73 ) | 0.08 | |
| 99-804-02 | 4.8 | 1.3 | 4.19 | 0.38 | 3.81 | 2.8 | 306 ( 73 ) | 0.08 |
| Spherical U Contact Series | Part Series | A | B | C | D | E | F | L ( Finger ) | T |
 |
99-128-02 | 11.2 | 5.1 | 2.39 | 0.81 | 1.57 | 8.1 | 406 ( 170 ) | 0.20 |
| 99-129-02 | 11.2 | 5.1 | 2.39 | 0.81 | 1.57 | 8.1 | 406 ( 170 ) | 0.25 | |
| 99-138-02 | 11.2 | 4.1 | 2.39 | 0.81 | 1.57 | 8.1 | 406 ( 170 ) | 0.20 | |
| 99-139-02 | 11.2 | 4.1 | 2.39 | 0.81 | 1.57 | 8.1 | 406 ( 170 ) | 0.25 | |
| 99-160-02 | 6.9 | 2.8 | 1.91 | 0.64 | 1.27 | 5.5 | 407.7 ( 214 ) | 0.12 | |
| 99-170-02 | 6.9 | 4.1 | 1.91 | 0.64 | 1.27 | 5.5 | 407.7 ( 214 ) | 0.12 | |
| 99-180-02 | 4.8 | 2.3 | 1.59 | 0.51 | 1.08 | 3.2 | 406 ( 256 ) | 0.10 | |
| 99-190-02 | 4.8 | 2.8 | 1.59 | 0.51 | 1.08 | 3.2 | 406 ( 256 ) | 0.10 |
| U Contact Series | Part Series | A | B | C | D | E | F | L ( Finger ) | T |
 |
99-110-02 | 12.2 | 7.1 | 4.78 | 1.63 | 3.15 | 9.4 | 406 ( 85 ) | 0.15 |
| 99-140-02 | 3.3 | 1.8 | 1.59 | 0.51 | 1.08 | 2.3 | 305 ( 85 ) | 0.08 | |
| 99-145-02 | 3.3 | 2.3 | 1.59 | 0.51 | 1.08 | 2.3 | 305 ( 85 ) | 0.08 | |
| 99-150-02 | 3.3 | 2.3 | 3.18 | 0.51 | 2.67 | 2.3 | 305 ( 96 ) | 0.08 |
| Spherical Flat Contact Series | Part Series | A | B | C | D | E | F | L ( Finger ) | T |
 |
99-617-02 | 22.6 | 3.3 | 4.78 | 1.22 | 3.56 | 15.9 | 406 ( 85 ) | 0.12 |
| 99-618-02 | 18.5 | 3.3 | 4.78 | 1.22 | 3.56 | 11.7 | 406 ( 85 ) | 0.12 | |
| 99-623-02 | 8.6 | 1.0 | 1.6 | 0.51 | 1.09 | 3.3 | 406 ( 256 ) | 0.10 | |
| 99-634-02 | 13.5 | 1.3 | 1.91 | 0.64 | 1.27 | 5.6 | 407.7 ( 214 ) | 0.12 | |
| 99-636-02 | 9.7 | 1.3 | 1.91 | 0.64 | 1.27 | 1.8 | 407.7 ( 214 ) | 0.12 | |
| 99-637-02 | 19.8 | 2.5 | 2.39 | 0.81 | 1.57 | 8.1 | 406 ( 214 ) | 0.25 |
Customized Product Specifications
99-400-02-800
99-270-02-169
99-220-02-146
99-881-02-96
99-490-02-40
99-485-02-40
99-841-02-43
99-320-02-32
99-610-02-85
99-613-02-85
99-616-02-85
99-702-02-64
There are more samples, please feel free to ask us.
